Ford F-150 DEF System Reset Guide for Diesel Owners
Last Updated on June 24, 2026 by Albert Duke
A Ford F-150 DEF system reset usually means one of two things. Your truck either needs time to recognize a proper Diesel Exhaust Fluid refill, or it has a real DEF system fault that will not clear with a simple reset.
DEF means Diesel Exhaust Fluid. It is used by the SCR system, or Selective Catalytic Reduction system, to reduce diesel exhaust emissions.
For 2018 to 2021 Ford F-150 trucks with the 3.0L Power Stroke diesel, the reset path depends on the exact dashboard message. The fastest way to fix the message is to identify which DEF warning your truck is showing first.
What Ford F-150 DEF Warnings Mean
The exact dashboard wording matters more than the word “reset.” A low DEF message is not handled the same way as a DEF fault message, speed limitation warning, or idle-only warning.
Ford’s owner manual lists several diesel exhaust fluid messages for the information display. Some mean the tank is low or empty. Others mean the system has detected a problem and the truck needs diagnosis.
Low DEF Level Message
A low DEF message means the truck still runs, but the tank needs to be refilled soon.
Ford lists messages such as “DEF level low Range XXX mi Refill now” and “DEF level low XX MPH max in XXX mi.” These messages are mileage-based warnings that tell you the DEF tank is getting low.
Empty DEF Tank Message
An empty DEF message means the truck may begin limiting speed.
Ford lists “DEF level empty Speed limited to YY MPH” and “DEF level empty YY MPH max Upon restart.” In plain language, the tank is empty and the truck is limiting, or will limit, vehicle speed.
Speed Limited Message
A speed-limited warning means the DEF issue has moved beyond a basic reminder.
If your F-150 says the speed is limited because the DEF level is empty, refill the tank as soon as possible. Ford states that the system needs to register the increased DEF level before full power returns.
System Fault Message
A DEF system fault message means the truck has detected a problem in the emissions system.
This can involve the DEF tank, reductant pump, heater, level sensor, wiring, connectors, or related control circuits. A fault message usually needs an OBD2 scan, not just a refill.
Once you match the message, the reset path becomes much clearer.
How To Reset Ford F-150 Low DEF Message
If your F-150 only says the DEF level is low, refill the tank first. The Ford F-150 DEF system reset is automatic when the system sees enough correct DEF and no active fault exists.
Use DEF that meets Ford specification WSS-M99C130-A. Ford lists the 2019 F-150 3.0L diesel DEF capacity as 21.3 liters or 22.5 quarts in the official capacities and specifications page.
- Park Safely And Turn The Truck Off
Park on level ground and shut the engine off.
Do not pour fluid into the wrong tank. DEF goes into the DEF filler, not the diesel fuel filler.
- Add Correct DEF Fluid
Add clean DEF from a sealed container.
Use fluid that meets Ford’s required DEF specification. Do not add water, diesel fuel, coolant, fuel additive, or any other fluid to the DEF tank.
- Turn The Truck On
Start the truck or switch the ignition on according to the message behavior.
The warning may not disappear instantly. Ford notes that after filling the tank from empty, there can be a short period before the increased DEF level registers.
- Drive Normally If Needed
If the tank was very low or empty, the system may need time to recheck the level.
Drive normally in a safe area and watch the message. If the warning clears, the system registered the refill and no further reset is needed.
- Do Not Disconnect The Battery As A First Fix
Disconnecting the battery is not a reliable DEF reset method.
If the truck has a real DEF system fault, the warning can return because the underlying problem is still present.
But a warning that stays after a proper refill usually points to a different branch.
Why Ford F-150 DEF Warning Stays On
A DEF warning staying on does not always mean the refill failed. It can mean the truck has not recognized the fluid yet, or it can mean a system fault is stored.
The key question is whether the message is only about low fluid or whether a check engine light, speed limit, or fault code is also present.
Level Sensor Delay
A short delay after refilling can happen, especially if the tank was empty.
Ford says the system must register the increased fluid level before full power returns. If you just added DEF, give the truck a normal drive cycle before assuming the system failed.
Contaminated DEF Fluid
Contaminated DEF can trigger warnings even if the tank is not empty.
DEF should be clean, fresh, and stored properly. Old fluid, dirty funnels, water contamination, or incorrect fluid can create emissions-system problems that a simple refill cannot fix.
Reductant System Codes
If the check engine light is on with the DEF warning, treat it as a fault.
OBD2 means On-Board Diagnostics. An OBD2 scanner reads trouble codes from the truck’s computer, but a basic scanner may not show all diesel emissions or Ford enhanced codes.
For scanner selection, Car Mechan’s guide to the best OBD2 scanner for the money can help owners choose a tool that reads more than basic engine codes.
Wiring Or Connector Faults
Ford TSB 23-2161 identifies possible wiring and connector issues on some 2018 to 2021 F-150 3.0L diesel trucks.
The bulletin discusses water intrusion in reductant harness connectors and wiring harness movement that can cause terminal fretting. That means the warning may return even after clearing codes if the connector or harness fault remains.
The next step is to separate a refill delay from a stored fault code.

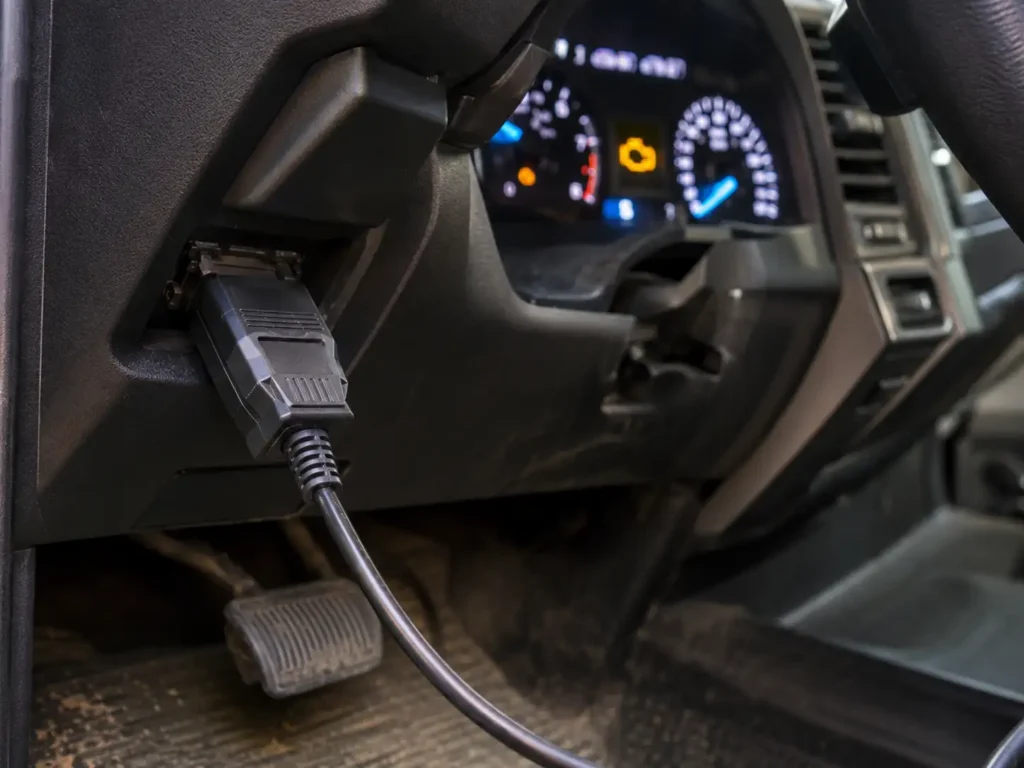

When Ford F-150 Needs A Scan Tool
If the check engine light is on with the DEF warning, treat it as a fault, not a reset problem. Refilling the tank may still be necessary, but it may not clear the warning.
Use these branches before clearing anything.
Check Engine Light
If the check engine light is on, scan the truck first.
A code can point toward the reductant heater, pump, level sensor, pressure circuit, wiring, or communication fault. Clearing the code before recording it can make diagnosis harder.
Speed Limit Countdown
If the truck shows a speed limit countdown or maximum speed warning, do not ignore it.
Ford’s DEF messages can include speed restriction when the tank is empty. If the tank is full and the warning remains, scan for codes before driving long distance.
Repeating DEF Fault
If the warning comes back after clearing codes, the truck still has an active or recurring issue.
That is common when a sensor, connector, heater, pump, harness, or tank assembly fault is present. The trouble codes tell you which DEF component the truck is unhappy with.
10 Common Ford F-150 DEF Fault Codes
Codes narrow the fault area, but they do not prove a failed part by themselves. Ford TSB 23-2161 lists several reductant system DTCs tied to affected diesel trucks, including 2018 to 2021 F-150 3.0L diesel models.
Use this table as a direction finder, not a parts replacement list.
| Code | Likely System Area | What To Do Next |
|---|---|---|
| P21DD | Reductant tank heater or related heater circuit area | Inspect wiring, connectors, and heater-related components before replacing parts |
| P20BA | Reductant heater control circuit area | Check the reductant heater circuit and related harness connections |
| P20B9 | Reductant heater A control circuit or open circuit area | Inspect heater wiring and connectors for open circuit or corrosion concerns |
| P204C | Reductant pressure sensor circuit low area | Check pressure sensor circuit wiring and connector condition |
| P208A | Reductant pump control circuit or open circuit area | Inspect reductant pump circuit and harness connections |
| P208B | Reductant pump control performance area | Check pump operation, wiring, and connector condition |
| P208C | Reductant pump control circuit low area | Test pump circuit voltage and wiring condition |
| P203B | Reductant level sensor circuit range or performance area | Check DEF level sensor readings and tank harness connections |
| P205B | Reductant tank temperature sensor circuit range or performance area | Inspect tank temperature sensor circuit and related connectors |
| U02A2 | Lost communication with reductant quality module area | Check module communication, connector condition, and harness integrity |
Ford’s bulletin matters because several of these codes can be related to harness or connector conditions. Replacing only the fluid or clearing only the warning may not solve the fault.
Those codes matter because Ford has published a service bulletin for some affected diesel F-150 trucks.
What Ford TSB 23 2161 Says
Ford TSB 23-2161 matters because it specifically includes some 2018 to 2021 F-150 3.0L diesel trucks. The bulletin covers vehicles with an illuminated malfunction indicator lamp and certain reductant system diagnostic trouble codes.
The bulletin points technicians toward inspection and repair of the reductant system. It does not describe the issue as a simple dashboard reset.
Key points from the bulletin include:
- Applies to some 2018 to 2021 F-150 trucks with the 3.0L diesel engine
- Includes reductant system DTCs such as P21DD, P20BA, P20B9, P204C, P208A, P208B, P208C, P203B, P205B, P21CD, and U02A2
- Notes possible water intrusion in reductant harness connectors
- Notes possible wiring harness movement causing terminal fretting
- Lists service paths involving connector inspection, harness replacement, pump and heater assembly work, or reductant tank assembly work depending on diagnosis
This is why a DEF system fault should be diagnosed before parts are replaced.
Car Mechan already has a diesel DEF reset guide for another platform if you want broader context on how DEF light reset logic works on a Mercedes Sprinter. The Ford F-150 procedure is still model-specific, so follow Ford’s messages and codes first.
That service bulletin also explains why clearing the message without diagnosis can bring the warning back.
Quick Ford F-150 DEF Reset Decision Guide
Use this table before disconnecting the battery or clearing codes. The right action depends on the exact warning, not the general phrase “DEF reset.
Ford F-150 DEF Warning Decision Flow
Use the exact dashboard message first. A low DEF level message usually resets after a proper refill, but a check engine light, speed limit, or idle-only warning needs diagnosis.
Low DEF Message Only
The truck is warning that the DEF tank is low or near empty.
Warning Clears After Driving
The truck has registered the new DEF level and no active fault is present.
Warning Stays On
The system may still be checking the level, or the truck may have a sensor or fluid issue.
Check Engine Or Speed Limit
A stored reductant system code or emissions fault may be active.
| What You See | Likely Meaning | What To Do |
|---|---|---|
| DEF level low message only | DEF tank is getting low | Add correct DEF and allow the truck to recheck the level |
| DEF level empty message | Tank is empty or system thinks it is empty | Refill the tank and give the system time to register the level |
| Warning clears after refill and driving | System registered the new DEF level | No further reset is needed |
| Warning stays but no check engine light | Possible level delay, underfill, old DEF, or sensor issue | Recheck DEF level and fluid quality, then scan if the message remains |
| Check engine light plus DEF warning | Stored DEF or emissions fault likely | Scan codes before clearing anything |
| Speed limited message | Empty tank or active SCR restriction | Refill if low, then scan if the warning remains |
| Idle-only message | Serious DEF or SCR condition | Avoid unnecessary driving and get diesel-capable diagnosis |
| Codes from TSB 23-2161 are present | Known reductant system diagnostic path may apply | Inspect connectors, harness, pump, heater, tank, and related circuits |
The right action depends on whether your truck is low on DEF or reporting a real emissions fault.
When To Stop Driving And Get Help
A low DEF message is manageable, but speed-limited and idle-only messages are different. Those warnings can affect drivability, especially if you stop the truck and it will not resume normal operation.
Stop trying DIY resets and get help if you see any of these conditions:
- The truck is limited to a low speed
- The truck warns that it will be limited upon restart
- The display shows an idle-only warning
- DEF was refilled correctly but the warning remains
- The check engine light returns after codes are cleared
- The truck has active reductant system codes
- You see damaged wiring or fluid leaks near the DEF tank
- You suspect contaminated DEF was added
A diesel-capable repair shop or Ford service procedure is the safer path when the truck has a stored fault. Guessing at sensors, pumps, heaters, or tank assemblies can get expensive quickly.
With those limits clear, the final takeaway is simple.
Best Next Step For F-150 DEF Warnings
A Ford F-150 DEF system reset is automatic after a proper refill if the tank was simply low and no fault exists. Add the correct DEF, let the truck recheck the level, and drive normally if the warning does not clear immediately.
If the message stays on with a check engine light, speed limitation, or idle-only warning, scan the truck before replacing parts. The exact dashboard wording and stored codes should decide your next step.
5 Ford F-150 DEF Reset Questions
Does The Ford F-150 Have A DEF Reset Button
No, the Ford F-150 diesel does not use a normal dashboard DEF reset button like an oil life reset. If the warning is only from low DEF, it should clear automatically after the tank is refilled and the system registers the level.
How Long Does A DEF Warning Take To Clear
A low DEF warning may clear after the truck recognizes the refill, but it may not disappear instantly. Ford notes that after an empty-tank refill, the system can take a short period to register the increased DEF level.
Can You Clear A Ford DEF Warning With An OBD Scanner
You can clear some stored codes with a capable scanner, but that does not fix the cause. If the DEF system still has a heater, pump, sensor, wiring, or connector fault, the warning can return.
Why Is My F-150 Speed Limited After Adding DEF
Your F-150 may still be speed limited because the system has not registered the refill yet, or because a DEF system fault is active. If the tank is full and the warning remains, scan for reductant system codes.
What DEF Does A Ford F-150 Diesel Use
The Ford F-150 3.0L diesel uses DEF that meets Ford specification WSS-M99C130-A. Ford lists the 2019 F-150 3.0L diesel DEF capacity as 21.3 liters or 22.5 quarts.
