Nissan Armada Oil Filter Location: Visual Guide 2026

The Nissan Armada oil filter location is typically underneath the vehicle, often on the passenger side of the engine block, accessible after removing a skid plate or splash shield. Knowing its precise position is crucial for efficient and mess-free oil changes, a fundamental aspect of maintaining your vehicle’s health.

We understand that visual guidance is often clearer than text alone, which is why we’ve prepared a comprehensive visual guide to walk you through every step. This article provides detailed images and diagrams to ensure you can confidently locate and access your Armada’s oil filter without guesswork.

To properly access your Armada’s oil filter, preparation is key. Here is what you need to know about preparing your Nissan Armada for oil filter access.

How to Prepare Your Nissan Armada for Oil Filter Access

Before you can even begin to locate the oil filter on your Nissan Armada, proper preparation and safety measures are paramount. As shown in Visual 1, safely elevating and securing your vehicle is the critical first step, ensuring your well-being throughout the process. Failing to do so can lead to serious injury.

1. Elevate and Secure the Vehicle: Use a sturdy floor jack to lift the front of your Nissan Armada, then immediately place jack stands (rated for at least 3 tons) under the frame rails. Ensure the vehicle is stable and cannot shift. Never rely solely on a jack.

   Alternatively, drive onto a set of automotive ramps designed for heavy SUVs. This provides the necessary clearance to work underneath safely.

2. Identify and Remove Skid Plates/Splash Shields: Many Nissan Armadas are equipped with underbody protection, such as skid plates or splash shields, which cover the oil filter area. As depicted in Visual 1, these are usually bolted to the frame. Carefully identify all retaining bolts and use the appropriate socket wrench to remove them.

   Keep track of the bolts for reinstallation. Typical torque specifications for these bolts range from 25-30 ft-lbs, which you’ll need for proper reinstallation.

3. Safety Considerations: Always wear appropriate personal protective equipment, including safety glasses and gloves, to protect against oil splashes and debris. Ensure you have adequate lighting, perhaps using the best work light for mechanics, to clearly see all components under the vehicle. Double-check that the vehicle is cool before beginning, to avoid burns from hot engine components or oil.

Once your Armada is safely prepared, you can proceed to the exact location of the oil filter. Let’s explore where is the Nissan Armada oil filter located underneath.

Where Is the Nissan Armada Oil Filter Located Underneath

As shown above, the Nissan Armada oil filter is strategically positioned for efficient filtration and often accessible from below the vehicle. For the Nissan Armada, particularly models equipped with the VK56DE V8 engine across various generations, the oil filter location is consistently found on the passenger side of the engine block, near the front.

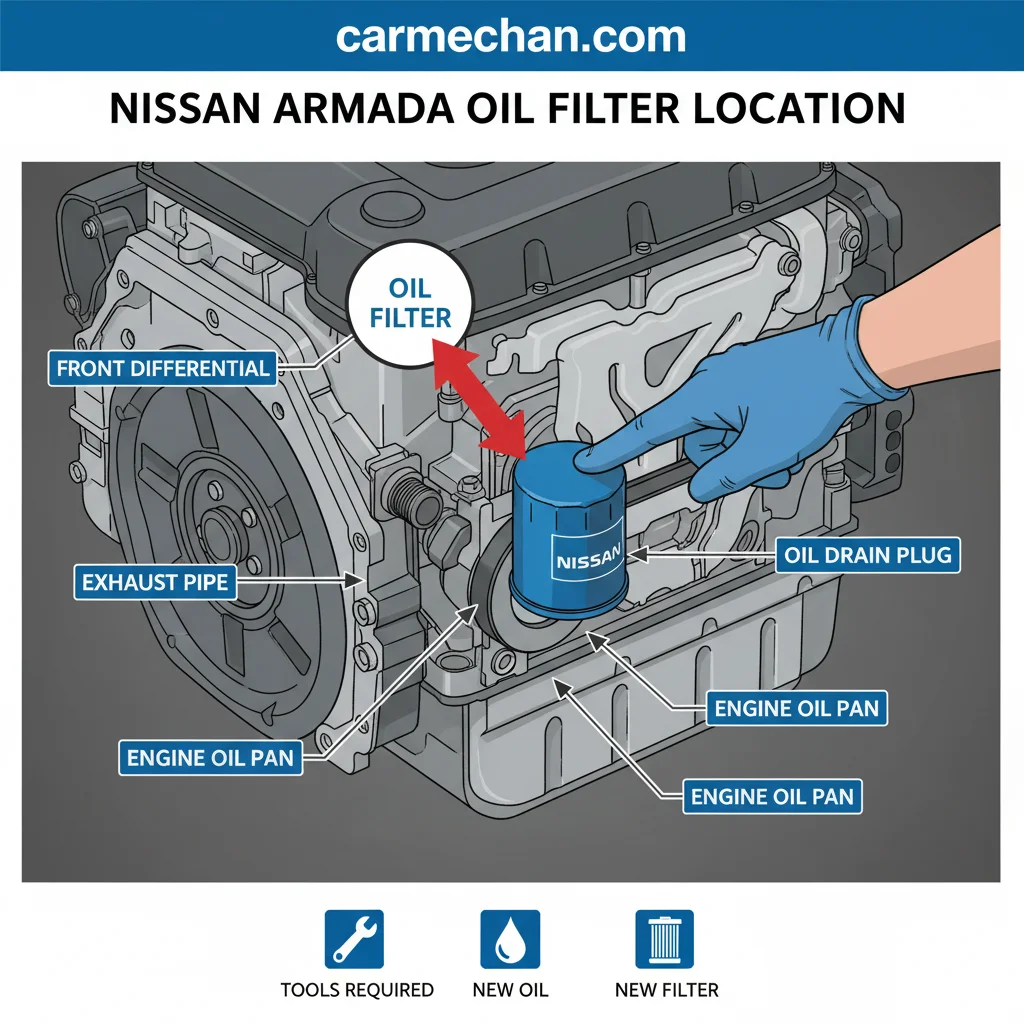

The image in Visual 2 provides a clear, close-up view of this exact spot once the underbody shielding is removed.

Look closely at the highlighted area in Visual 2. You will see the cylindrical oil filter screwed directly into the engine block. It’s typically a metal canister, often blue, black, or white, with a hexagonal or fluted end designed to accommodate an oil filter wrench.

Surrounding components in the visual context include parts of the exhaust system and the oil pan itself, which is usually located further back and centrally beneath the engine.

The visual clearly highlights its orientation, which is usually angled slightly downwards or horizontally, making it relatively straightforward to unscrew once you have proper clearance. We find that this placement has remained largely consistent across most Armada model years, simplifying the task for owners of various generations, including those performing routine Nissan SUV maintenance.

No significant variations in its general position typically occur that would drastically alter access.

Now that you’ve pinpointed its location, understanding the removal process is the next crucial step. Let’s learn how to navigate Nissan Armada oil filter removal steps.

How to Navigate Nissan Armada Oil Filter Removal Steps

Removing your Nissan Armada’s oil filter involves a series of sequential steps that, when followed correctly, ensure a smooth and clean oil change. The process diagram in Visual 3 outlines these actions, providing a clear visual flow for each stage of filter removal and replacement. We recommend keeping a drain pan handy throughout the entire process.

1. Position Drain Pan: As depicted in Visual 3, the first step is to place an adequate oil drain pan directly beneath the oil drain plug, which is located on the oil pan. This will capture the old engine oil. Ensure the pan is large enough to hold approximately 6-7 quarts of oil, typical for an Armada.

2. Remove Drain Plug: Using the correct socket wrench, carefully loosen and remove the oil drain plug. Allow all the old oil to completely drain into the pan. This usually takes about 10-15 minutes. Once drained, reinstall the drain plug, ensuring it’s tightened to the manufacturer’s specified torque, typically around 25 ft-lbs, to prevent leaks.

3. Loosen and Remove Oil Filter: Shift your drain pan directly underneath the oil filter. The diagram reveals the next crucial step: using an appropriate oil filter wrench to loosen the filter. For most Nissan Armadas, a cap-style oil filter wrench (typically 74/76mm for common filters) works best.

   Turn the wrench counter-clockwise to loosen. Once it’s loose enough to turn by hand, carefully unscrew it, allowing any remaining oil inside the filter to drain into the pan. Be prepared for a small gush of oil as the filter comes off.

4. Install New Filter: Before installing the new oil filter, apply a thin coat of fresh engine oil to the rubber gasket of the new filter. As shown in the final step of Visual 3, carefully screw the new filter onto the engine block by hand until the gasket makes contact.

   Then, tighten it an additional 3/4 to one full turn by hand. Avoid overtightening with a wrench, as this can damage the filter or its mounting.

As you consider replacement, it’s vital to know which filter type suits your vehicle best. Let’s compare cartridge oil filters vs spin on Nissan Armada options.

Cartridge Oil Filters vs Spin on Nissan Armada Options

When it comes to oil filters, you’ll generally encounter two main types: spin-on and cartridge, each with distinct designs and replacement procedures. Understanding the difference is key to selecting the correct replacement for your Nissan Armada and ensuring optimal engine filtration. We find that the type of filter significantly impacts both the installation process and potential environmental considerations.

Spin-On Oil Filters

Spin-on oil filters are self-contained units that consist of a metal canister housing the filter media, an anti-drainback valve, and a rubber gasket. They screw directly onto a threaded nipple on the engine block. We see these as very common in older vehicle designs and many modern trucks and SUVs due to their and easy-to-install nature, requiring only a simple twist-on and twist-off action during replacement.

Cartridge Oil Filters

Cartridge oil filters, by contrast, consist only of the filter media element, which is inserted into a reusable housing or canister built into the engine. We observe these as becoming more prevalent in newer vehicle designs, often for environmental reasons as they produce less waste (only the filter element is discarded).

However, they can be more involved to replace, sometimes requiring specialized tools to open the housing.

Armada’s Common Filter Type

For the Nissan Armada, especially models equipped with the VK56DE V8 engine, the predominant oil filter type is a traditional spin-on filter. We have not seen a widespread switch to cartridge filters across its generations. This means that for most Armada owners, the replacement process involves removing and installing a complete, self-contained unit, often simplifying DIY oil changes compared to vehicles with cartridge filters.

Regardless of the filter type, having the right tools makes the job much easier. Let’s detail the 5 essential tools for Nissan Armada oil filter access.

5 Essential Tools for Nissan Armada Oil Filter Access

Performing an oil change on your Nissan Armada requires more than just a new filter and oil; having the correct tools is crucial for efficiency and safety. We’ve compiled a list of five essential items that will make accessing and replacing your oil filter a straightforward task, minimizing frustration and ensuring a professional result.

1. Floor Jack and Jack Stands (or Ramps): To safely elevate your Armada and provide adequate working clearance underneath, a sturdy floor jack paired with heavy-duty jack stands (or vehicle ramps) is non-negotiable. This prevents the vehicle from falling, protecting you from severe injury. We always stress safety first.

2. Oil Filter Wrench: A cap-style oil filter wrench is ideal for the Nissan Armada’s spin-on filter. We find that a 74/76mm cap-style wrench fits most common filters for the VK56DE engine snugly, providing excellent grip without crushing the filter. Strap-style or claw-style wrenches can also work, but a cap-style offers precision and ease.

3. Drain Pan: A large capacity oil drain pan is essential to collect the old engine oil and any residual oil from the filter. We recommend one with at least a 7-quart capacity, considering the Armada’s oil capacity. Look for one with a high lip and a pour spout to minimize spills.

4. Socket Wrench Set (with extensions) and Breaker Bar: You’ll need a socket wrench for the oil drain plug and often for the skid plate bolts. A 14mm or 17mm socket is common for the drain plug. Sometimes, bolts are tight or rusted, so a breaker bar can provide the extra leverage needed, potentially combined with a spray to loosen rusted bolts.

   Extensions help reach recessed bolts.

5. Torque Wrench: A torque wrench is vital for tightening both the oil drain plug and the skid plate bolts to their manufacturer-specified torque settings. We emphasize this to prevent overtightening, which can strip threads, or undertightening, which can lead to leaks. This tool ensures precision and prevents damage.

With the right tools and knowledge, changing your Armada’s oil filter becomes a straightforward task. Now, let’s look at how to quickly confirm your Armada oil filter location is correct.

How to Quickly Confirm Your Armada Oil Filter Location

After all the preparation and visual guidance, a final confirmation of your Nissan Armada oil filter location and proper installation is essential for peace of mind. We always double-check our work to ensure everything is secure and leak-free. Here are the key visual cues to quickly verify you’ve found the correct component and installed it properly:

• Passenger Side, Lower Engine Block: Confirm the cylindrical filter is attached to the engine on the passenger side, generally towards the front.
• Directly Under Oil Pan: While the oil pan is typically central, the filter will be adjacent to it, on the lower part of the engine block.
• Threaded Connection: It should be screwed into a threaded port, not simply clamped or housed within a larger assembly.
• Gasket Contact: Visually inspect the new filter to ensure its rubber gasket is fully seated against the engine block.
• No Tools Needed for Hand Tightening: the final tightening should be done by hand for the filter itself.

After installation, lower your Armada and start the engine, allowing it to run for 5-10 minutes. Immediately check underneath the vehicle (or use a piece of cardboard) for any drips or signs of leakage around the oil filter and drain plug. We have found that this visual verification is crucial.

If you see any leaks, shut off the engine and re-evaluate the tightening of the filter and drain plug. Reconfirming the 2015 Nissan Altima oil filter location, for instance, involves similar verification steps, underscoring its universal importance across Nissan models.

By following this comprehensive guide, you’re well-equipped to handle your Nissan Armada’s oil filter. Let’s wrap up with some final thoughts.

Successfully locating and changing the Nissan Armada oil filter is a fundamental maintenance task that empowers you as a vehicle owner. We have walked you through the precise location underneath the vehicle, often behind a skid plate on the passenger side, highlighting the critical role of visual guidance.

This process, coupled with the right tools and careful attention to preparation, ensures a smooth and effective oil change. Understanding the distinction between spin-on and cartridge filters, and knowing your Armada typically uses a spin-on, helps you choose the correct replacement every time. We believe that arming yourself with this knowledge and the right tools allows you to confidently tackle your next Nissan Armada oil change, ensuring your vehicle runs smoothly for miles to come.

7 Most Asked Nissan Armada Oil Filter Questions Answered

Q1: Where exactly is the oil filter on a Nissan Armada?

The Nissan Armada oil filter is typically found underneath the vehicle, positioned on the passenger side of the engine block. It often requires removing a skid plate or splash shield to gain full access to its location. We advise looking towards the front portion of the engine after the vehicle is safely elevated.

Q2: Do all Nissan Armada models have the same oil filter location?

While the general vicinity is consistent, slight variations in the Nissan Armada oil filter location can occur between different model years or generations, particularly concerning surrounding components or the exact angle. However, for most VK56DE V8 models, it remains on the passenger side of the lower engine block. We recommend verifying with your owner’s manual.

Q3: What tools do I need to access the Armada oil filter?

To access your Nissan Armada’s oil filter, you’ll need essential tools such as a jack and jack stands (or ramps) for elevation, an appropriate oil filter wrench (often 74/76mm cap-style), an oil drain pan, a socket wrench set for the drain plug and skid plate bolts, and a torque wrench for proper reinstallation.

We always recommend wearing safety glasses and gloves.

Q4: Is the Nissan Armada oil filter cartridge or spin-on?

Most Nissan Armada models, especially those equipped with the VK56DE V8 engine across various generations, typically utilize a traditional spin-on oil filter. This means the entire filter unit (canister and media) is replaced. We haven’t observed a widespread transition to cartridge-style filters for this vehicle line.

Q5: What precautions should I take when changing the Armada oil filter?

When changing your Nissan Armada’s oil filter, always prioritize safety by ensuring the vehicle is securely lifted and cooled down. Use appropriate personal protective equipment, like safety glasses and gloves, to prevent injury from hot oil or debris. We also recommend having plenty of shop rags to manage spills and avoid environmental contamination.
