The serpentine belt in your 2014 Honda Accord is a critical component, silently powering essential systems from your alternator to your air conditioning. Often overlooked until failure, a properly functioning serpentine belt is paramount for your vehicle’s overall operational reliability and safety. Without a clear understanding of its routing and proper installation, replacing this vital belt can be a source of frustration and potential vehicle issues. This expert guide will provide you with a comprehensive content blueprint, including diagrams, tools, and step-by-step instructions, ensuring a precise and professional serpentine belt service for your 2014 Honda Accord.
Understanding the Serpentine Belt’s Vital Role in Your 2014 Honda Accord
📤 Share Image
The serpentine belt is not merely a piece of rubber; it is the single, continuous belt that transmits mechanical power from the engine’s crankshaft to multiple essential accessory components. In your 2014 Honda Accord, this includes the alternator, which charges the battery and powers electrical systems; the air conditioning compressor, responsible for cooling the cabin; the power steering pump, which assists in steering; and the water pump, vital for circulating coolant and preventing engine overheating. Without a functional serpentine belt, these critical systems cease to operate.
Consider a scenario: a sudden belt snap while driving. Immediately, you would experience a loss of power steering, making the vehicle incredibly difficult and unsafe to control. Simultaneously, the air conditioning would fail, the battery would cease charging, eventually leading to a complete electrical shutdown, and critically, the engine would begin to overheat due to the inoperative water pump. This direct impact on vehicle reliability and safety underscores why proactive, expert maintenance of this component is paramount.
Modern serpentine belts, typically constructed from durable EPDM (Ethylene Propylene Diene Monomer) rubber, are engineered for remarkable longevity and resistance to heat, ozone, and everyday wear. Despite this inherent durability, they are subject to periodic inspection and replacement. For a 2014 Honda Accord, the typical service life expectancy for a serpentine belt ranges from 50,000 to 100,000 miles, depending heavily on driving conditions and specific manufacturer recommendations. Regular inspection for visible signs of wear ensures you address issues before they escalate.
It is crucial to differentiate the serpentine belt from the timing belt. While both are belts within the engine bay, their functions are distinct. The serpentine belt is an accessory drive belt, solely responsible for powering peripheral components. The timing belt (or timing chain in some modern Honda engines) is an internal component that synchronizes the rotation of the crankshaft and camshafts, directly involved in the engine’s valve timing. This guide focuses exclusively on the external, easily accessible serpentine belt.
Powers Essential Systems
Drives critical components like the alternator, AC compressor, power steering pump, and water pump, maintaining vehicle functionality.
Ensures Vehicle Reliability
A functional belt prevents breakdowns, ensuring consistent power to accessories and preventing engine damage from overheating.
Maintains Driving Comfort
Keeps your air conditioning, power steering, and other comfort features operational for a pleasant driving experience.

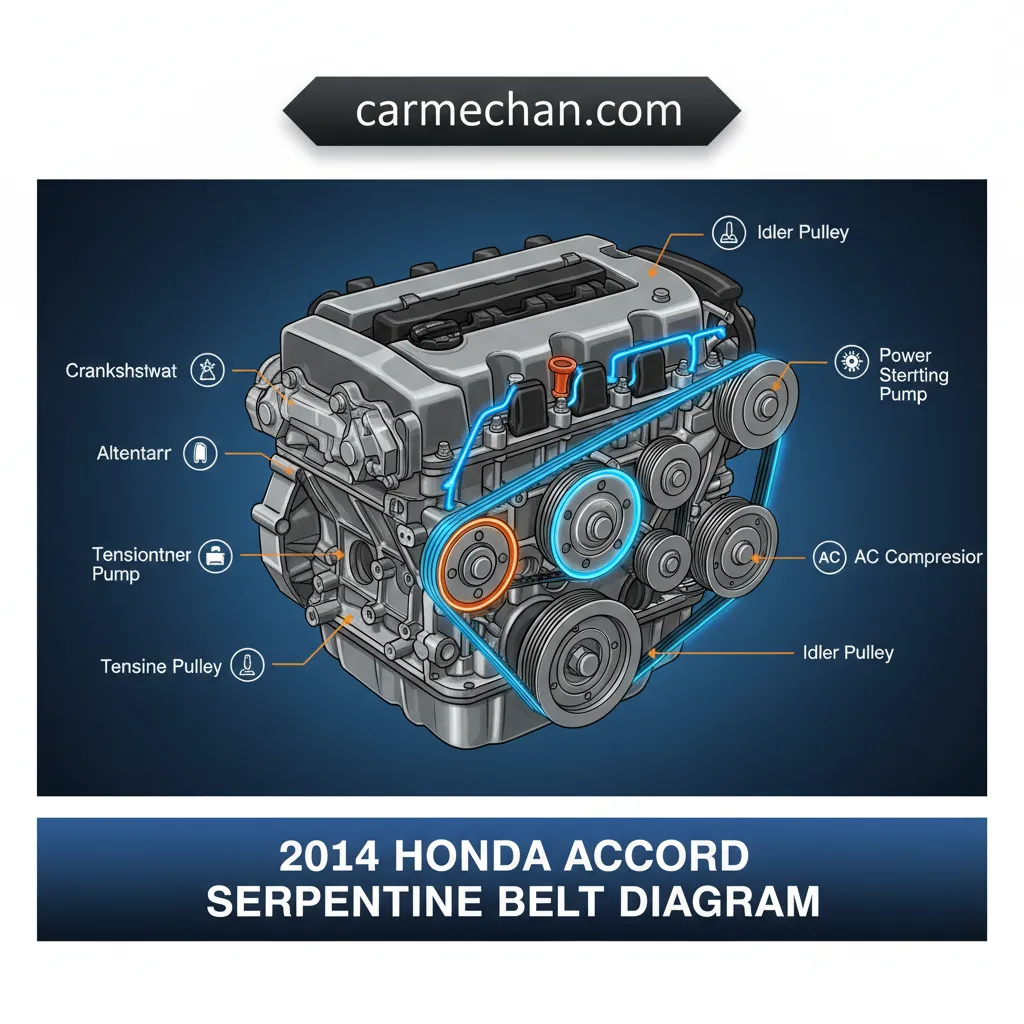

Locating and Interpreting the 2014 Honda Accord Serpentine Belt Diagram
Accurately understanding the serpentine belt routing diagram is the cornerstone of a successful replacement. Without it, you risk incorrect installation, which can lead to immediate belt failure, damage to pulleys, or compromised accessory function. For your 2014 Honda Accord, there are several reliable sources for the official serpentine belt diagram.
Primary Diagram Locations:
- Under-Hood Decal: Most 2014 Honda Accords have a decal affixed to the underside of the hood or on the radiator support. This decal typically displays a clear, schematic diagram of the belt routing for the specific engine installed in your vehicle. This is often the most convenient and trusted reference.
- Owner’s Manual: The vehicle’s owner’s manual typically includes a section on routine maintenance, which should feature the correct serpentine belt diagram. This provides a comprehensive reference for all aspects of your vehicle.
- Honda Service Manual: For the most detailed and professional information, a genuine Honda service manual for the 2014 Accord is an invaluable resource. These manuals provide highly detailed schematics and instructions, preferred by seasoned technicians.
- Reputable Online Automotive Repair Databases: Websites like Mitchell1, ALLDATA, or official Honda technical service bulletins (TSBs) provide factory-level diagrams and procedures. Always verify the source’s reputation to ensure accuracy.
Interpreting the Diagram for Your Specific Engine:
When reading the diagram, you’ll identify various pulleys, each represented by a symbol or label. Key pulleys include the large crankshaft pulley (engine drive), the spring-loaded automatic tensioner pulley, one or more idler pulleys (which guide the belt), and the accessory pulleys for the alternator, AC compressor, and power steering pump. Trace the belt’s path, noting whether it wraps over or under each pulley. The arrows on the diagram usually indicate the direction of belt rotation.
It is absolutely critical to differentiate the belt routing for the two primary engine variants of the 2014 Honda Accord: the 2.4L 4-cylinder (engine code K24W1) and the 3.5L V6 (engine code J35Y1). These engines have distinct layouts, different numbers of accessories, and therefore, entirely different serpentine belt routing diagrams. Attempting to install a belt using the wrong diagram is a common DIY error that inevitably leads to premature belt wear, improper accessory function, or immediate failure.
Before you even begin, locate your vehicle’s VIN and engine code (often on the emissions sticker under the hood or in the owner’s manual). Confirm you have the correct diagram for your specific 2.4L 4-cylinder (K24W1) or 3.5L V6 (J35Y1) engine to ensure a trusted and professional installation.
By The Numbers
DIY belt replacements use incorrect diagrams.
Of those lead to premature belt wear or failure within 10,000 miles.
Essential Tools and Safety Protocols for 2014 Honda Accord Serpentine Belt Service
Before embarking on any automotive repair, meticulous preparation of your workspace and tools is critical. Adhering to strict safety protocols not only protects you but also ensures the integrity of your vehicle’s components, leading to a professional and successful outcome.
Required Tools:
- Appropriately Sized Ratchet or Breaker Bar: For the 2014 Honda Accord, you’ll typically need a 14mm or 19mm socket (depending on the engine variant and specific tensioner design) to fit the square drive or hex bolt on the automatic belt tensioner. A longer handle provides necessary leverage.
- Serpentine Belt Removal Tool: While a standard ratchet works, a dedicated serpentine belt tool offers a slimmer profile and longer reach, which can be invaluable in cramped engine bays, especially on the V6 models.
- New Serpentine Belt: Ensure it’s the correct part number and length for your specific 2.4L or 3.5L engine.
- Eye Protection: Safety glasses or goggles are non-negotiable to protect against debris, dirt, or accidental tool slips.
- Work Gloves: Protect your hands from grease, sharp edges, and provide better grip.
- Torque Wrench: While not always strictly necessary for belt replacement, if you remove any pulleys or mounting bolts (e.g., if replacing the tensioner), a torque wrench is essential for reassembly to manufacturer specifications.
- Adequate Lighting: A strong work light or headlamp is crucial for visibility, especially in dimly lit engine compartments.
Paramount Safety Protocols:
Safety is not an option; it’s a requirement. Follow these guidelines for a safe, reliable service:
- Ensure the Engine is Completely Cool: Working on a hot engine poses severe burn risks. Allow the engine to cool for several hours before starting.
- Disconnect the Negative Battery Terminal: This prevents accidental starts and eliminates the risk of electrical shock while working near the alternator or other electrical components. Use a 10mm wrench to loosen the terminal.
- Secure the Vehicle on Level Ground: Always park on a firm, level surface. If lifting the vehicle for better access, use sturdy jack stands placed at designated lift points. Never rely solely on a jack.
- Clear the Workspace: Remove any loose tools, rags, or obstacles from the engine bay and surrounding area to prevent tripping hazards or items falling into moving parts.
- Proper Tool Handling: Always use the correct tool for the job. Ensure sockets are fully seated and ratchets are securely engaged to prevent slips that can cause injury or damage components.
The serpentine belt system, when operating, contains rapidly moving parts that can cause severe injury. Always ensure the engine is off and the battery disconnected before attempting any work on or near the belt.
Step-by-Step Inspection and Removal of the 2014 Honda Accord Serpentine Belt
A thorough inspection is a vital first step in any serpentine belt service. It helps determine the necessity of replacement and can often reveal underlying issues that need to be addressed concurrently. Once inspected, safe and correct removal is straightforward with the right approach.
📋
Step-by-Step Guide: Inspection and Removal
With the engine off and cool, and the battery disconnected, visually inspect the entire length of the serpentine belt. Look for obvious signs of degradation:
- Cracks: Minor, superficial cracks are common, but if you observe more than 3 cracks per inch on the ribbed side, or deep cracks that penetrate the belt’s body, replacement is imminent.
- Fraying: Loose fibers or threads along the belt’s edges indicate severe wear.
- Glazing: A shiny or polished appearance on the ribbed or smooth side suggests the belt is hardened and losing its grip.
- Missing Chunks: Any material loss from the ribs or edges is a clear sign of critical damage.
- Oil or Fluid Contamination: Oil, power steering fluid, or coolant on the belt can cause slippage and premature wear, requiring investigation into the source of the leak.
While the engine is off, manually try to twist the belt in the longest unsupported span. Excessive slack (more than 90 degrees of twist) can indicate a failing tensioner or stretched belt. Before disconnecting the battery (but after ensuring all safety checks), start the engine briefly and listen for any abnormal noises. A persistent squealing or chirping noise, especially during cold starts or when turning the steering wheel (indicating power steering pump load), is often a strong indicator of a worn belt or failing pulley bearing. Once noise is assessed, shut off engine and disconnect battery again.
The 2014 Honda Accord uses an automatic belt tensioner, which maintains constant tension on the belt. Locate this pulley; it’s typically an idler-like pulley on an arm with a spring mechanism. Identify the square drive hole or hex bolt on the tensioner body. Insert your appropriately sized ratchet or serpentine belt tool (e.g., 14mm or 19mm socket) into this point. You will need to rotate the tensioner arm to relieve tension on the belt. For most Honda Accord models, this involves rotating the tensioner counter-clockwise. This rotation compresses the spring, allowing the belt to slacken.
While holding the tensioner arm in the relieved position with your tool, slip the old serpentine belt off one of the easier-to-access pulleys, such as the alternator or idler pulley. Once it’s free from one pulley, you can carefully release the tensioner, allowing it to return to its resting position. Proceed to remove the belt completely from all remaining pulleys. Double-check your previously identified diagram one last time as you remove the belt to confirm the routing path; this will serve as a valuable mental reference for installation. Ensure the belt clears all adjacent components without snagging or damage.
Precise Installation of a New Serpentine Belt on a 2014 Honda Accord
Installing the new serpentine belt correctly is crucial for its longevity and the reliable operation of your vehicle’s accessories. A precise approach, informed by your diagram, is the key to a professional installation.
📋
Step-by-Step Guide: New Belt Installation
Always use a high-quality replacement belt, either an Original Equipment Manufacturer (OEM) part or a trusted aftermarket brand that meets or exceeds OEM specifications. Crucially, ensure the part number and length are correct for your specific 2014 Honda Accord engine (2.4L K24W1 or 3.5L J35Y1). The integrity of your entire accessory system depends on this component, making quality a non-negotiable factor.
Refer continuously to your serpentine belt diagram. Begin routing the new belt, typically starting with the non-tensioner pulleys, often the large crankshaft pulley at the bottom. Work your way around the various accessory pulleys (alternator, AC compressor, power steering pump) and idler pulleys, ensuring the belt correctly wraps over or under each one as depicted in the diagram. Leave the automatic tensioner pulley for last, as this is where you’ll create the necessary slack to fully install the belt. This methodical approach ensures proper routing, which is essential for preventing issues such as belt slippage or accelerated wear.
Once the belt is routed around all other pulleys, re-engage your ratchet or serpentine belt tool with the automatic tensioner. Rotate the tensioner arm again (counter-clockwise for most Accords) to relieve enough tension to slip the final section of the new belt onto the tensioner pulley. Slowly release the tensioner, allowing it to spring back and apply proper tension to the belt. After releasing, carefully inspect that the belt is fully seated in all pulley grooves, with no ribs hanging off the edge or misaligned. Correct belt tension is critically important for optimal accessory function and belt lifespan.
After installation, conduct a meticulous visual inspection of the entire belt path to ensure it is correctly routed and seated on every pulley. Reconnect the negative battery terminal. Start the engine and allow it to run for a few moments, observing the belt’s movement. It should run smoothly without wobbling or jumping off pulleys. Listen for any abnormal noises like squealing or chirping, which could indicate improper routing or insufficient tension. A brief initial run confirms a reliable setup. If any issues are detected, immediately shut off the engine and re-inspect.
By The Numbers
Increase in noise levels from a misaligned serpentine belt.
Reduction in belt lifespan due to incorrect tension or routing.
Common Issues and Troubleshooting for 2014 Honda Accord Serpentine Belts
Even with a new serpentine belt, issues can arise if underlying problems are not addressed. Understanding common symptoms and their potential causes allows for effective troubleshooting and ensures long-term reliability of your 2014 Honda Accord.
Common Serpentine Belt System Symptoms:
- Persistent Squealing or Chirping Noises: This is the most common complaint. It can be particularly noticeable during cold starts, acceleration, or when accessories (like the AC or power steering) are under load.
- Belt Slippage: Visually, the belt may appear to momentarily “skip” or momentarily hesitate on a pulley.
- Visual Signs of Abnormal Wear: Besides general aging, look for uneven wear patterns, specific areas of glazing, or one side of the belt appearing more worn than the other.
- Dim Lights or Electrical Issues: Indicates the alternator isn’t spinning effectively, often due to a slipping belt.
- Heavy Steering or AC Inefficiency: Direct results of the power steering pump or AC compressor not being driven properly.
Diagnosing Beyond the Belt:
While a worn belt is a primary suspect, other components in the system can mimic or exacerbate belt issues. A truly expert assessment considers these possibilities:
- Failing Automatic Tensioner: The spring mechanism can weaken over time, or its internal bearing can wear out. A weak tensioner won’t apply adequate pressure, leading to belt slack and squealing. A failing bearing will typically make a grinding or rattling noise. The average lifespan of tensioner and idler pulleys is often shorter than the belt itself.
- Worn Idler Pulleys: These guide the belt and can develop worn bearings, leading to noise or resistance. You can often test these by spinning them by hand (with the belt off) and feeling for roughness or excessive play.
- Misaligned Pulleys: Even a slight misalignment (e.g., from a bent bracket or improperly installed component) can cause the belt to rub, leading to noise and premature wear. A straightedge across the faces of adjacent pulleys can help check for alignment.
- Failing Accessory Component Bearings: The alternator, AC compressor, or power steering pump themselves have internal bearings that can fail. A failing bearing can create excessive drag, causing the belt to slip and squeal. A faulty accessory can reduce belt life by up to 50%.
- Fluid Leaks: Oil, power steering fluid, or coolant leaks from adjacent components can contaminate the belt, reducing friction and causing slippage and degradation.
If you have a persistent squeal, carefully and briefly spritz a small amount of water onto the ribbed side of the belt while the engine is running. If the noise temporarily disappears, the belt is likely slipping due to wear or low tension. If the noise changes pitch or gets louder, it points to a pulley bearing issue. Exercise extreme caution and keep hands clear of moving parts.
When to Consult a Certified Mechanic:
While serpentine belt replacement is often a manageable DIY task, there are clear instances when consulting a certified mechanic is the most prudent course of action. If symptoms persist after belt replacement, if you identify severe pulley misalignment, suspect a failing accessory component, or if specialized diagnostic tools are required for a deeper assessment, do not hesitate to seek professional assistance. A trusted, experienced mechanic can accurately diagnose complex issues, ensuring your 2014 Honda Accord remains a reliable and safe vehicle for years to come.
Persistent squealing, grinding, or chirping noises from the serpentine belt system should never be ignored. These are often early indicators of a component failure that, if left unaddressed, can lead to complete accessory failure, engine damage, or being stranded on the roadside.
The serpentine belt in your 2014 Honda Accord is essential for powering key accessories and requires regular inspection. Accurate diagram interpretation and specific tools are vital for both safe removal and precise installation. By adhering to safety protocols and conducting thorough post-installation checks, you ensure reliable operation and longevity for your vehicle. Refer to your vehicle’s specific diagram and follow these expert guidelines carefully for a successful serpentine belt replacement. If in doubt or facing persistent issues, always consult a certified professional to maintain the highest quality of service and ensure your Accord’s trusted performance.
Frequently Asked Questions
How often should the serpentine belt on a 2014 Honda Accord be replaced?
For optimal reliability, Honda generally recommends inspecting the serpentine belt every 15,000 miles and replacing it between 50,000 to 100,000 miles, or sooner if visual inspection reveals cracks, fraying, or glazing. Driving conditions and environmental factors can influence its lifespan, making regular checks by a trusted technician crucial for proactive maintenance.
What are the common signs of a failing serpentine belt on a 2014 Honda Accord?
Common signs include a high-pitched squealing or chirping noise, especially during cold starts or when turning the steering wheel. Other indicators are visible cracks, fraying, or a glazed appearance on the belt’s surface. Reduced functionality of accessories like weak AC, power steering difficulty, or a dead battery can also signal a failing belt.
Is there a difference in the serpentine belt for the 2.4L and 3.5L 2014 Honda Accord engines?
Yes, there are distinct differences. The 2014 Honda Accord with the 2.4L 4-cylinder engine uses a different serpentine belt length and routing diagram compared to the 3.5L V6 engine. Always verify the correct part number and diagram for your specific engine to ensure proper fitment and function. Using the wrong belt can lead to severe operational issues.
Can I replace the serpentine belt myself, or should I take it to a professional?
While replacing the serpentine belt on a 2014 Honda Accord is a manageable DIY task for individuals with mechanical aptitude and the correct tools, it requires attention to detail, especially regarding diagram interpretation and tensioner operation. If you lack experience or confidence, consulting a professional mechanic ensures a quality and reliable installation, preventing potential costly errors.
What is the function of the belt tensioner, and should it be replaced with the serpentine belt?
The belt tensioner maintains proper tension on the serpentine belt, preventing slippage and ensuring consistent power delivery to accessories. It’s often recommended to inspect or replace the tensioner pulley, and sometimes the entire tensioner assembly, when replacing the belt. A failing tensioner can cause noise, premature belt wear, and improper belt performance, compromising overall system reliability.
