2016 Mazda CX-5 TPMS Reset: Executed via Dashboard Settings
Seeing a glowing tire pressure light on your dashboard is never fun, but on the 2016 Mazda CX-5, it is often just a request for a quick system update. Many owners mistakenly search for physical pressure sensors inside the wheels that do not exist, or they wait for a light to turn off on its own after inflating a tire. Understanding that the system requires a manual initialization is the first step toward clearing that warning. In this guide, we will walk through the exact steps to perform a 2016 Mazda CX-5 TPMS reset so you can get back on the road with confidence.
Why the 2016 Mazda CX-5 TPMS Light Stays On
Recommended Best Deal Products
📤 Share Image
Understanding Indirect Tire Monitoring
The 2016 Mazda CX-5 employs an indirect tire pressure monitoring system (TPMS). Unlike direct systems that utilize battery-powered sensors attached to the valve stems of each wheel, the indirect system leverages the vehicle’s existing ABS (Anti-lock Braking System) wheel speed sensors. This setup is highly reliable because it eliminates the failure points associated with dead sensor batteries or damaged valve transmitters.
The system functions by monitoring the rotational speed of each wheel. A tire with lower air pressure has a slightly smaller rolling diameter, which forces it to rotate faster than a properly inflated tire to cover the same distance. The TPMS control module detects this discrepancy in rotation speeds and triggers the dashboard warning light to alert the driver. Because the system is relative, it does not “know” exactly what the PSI is; it only knows when a wheel is spinning at an inconsistent rate compared to its peers.
Identifying TPMS Warning Light Signals
Interpreting the dashboard light is critical to determining if you need a simple reset or a mechanical inspection.
- Solid Warning Light: This indicates that the system has detected a difference in rotational speed, suggesting one or more tires may be under-inflated. This is the most common state after a tire rotation or a seasonal temperature drop.
- Flashing Warning Light: A blinking light usually signifies a malfunction within the TPMS or ABS system itself, rather than a pressure-related issue. If the light blinks for about a minute and then stays solid, it indicates a communication error between the ABS sensors and the control module, or a fault in the sensor hardware.
By The Numbers
Indirect Monitoring
Optimal Baseline
How to Perform a 2016 Mazda CX-5 TPMS Reset
Pre-Calibration: Tire Pressure Checks
Before attempting a 2016 Mazda CX-5 TPMS reset, you must ensure all four tires are inflated to the manufacturer’s specified pressure. Relying on the light alone is dangerous because the system only detects relative differences. If all four tires are low by the same amount, the system may not trigger. Use a high-quality tire pressure gauge to verify that each tire matches the specification found on the placard located on the driver-side door jamb. Never rely on the gas station gauge; check them when the tires are “cold” (driven less than a mile).
Recommended Best Deal Products
Executing the Initialization Sequence
Once you have confirmed the correct PSI, you can trigger the system to reboot and recalibrate to the current state.
📋
Step-by-Step Guide
Park the vehicle on level ground, turn the engine off, and ensure the parking brake is engaged.
Turn the ignition to the “ON” position (do not start the engine). If your model has a push-button start, press the start button twice without touching the brake pedal.
Locate the TPMS reset button, typically found on the lower dashboard to the left of the steering wheel. Press and hold the button until the TPMS warning light on the instrument cluster flashes twice and you hear a distinct audible chime.
Remember: The light does not disappear immediately upon pressing the button. The system performs a calibration “drive cycle.” You must drive the vehicle at speeds above 15 mph for at least 15–20 minutes to allow the computer to learn the new wheel rotation profiles.
Troubleshooting Common 2016 Mazda CX-5 TPMS Issues
Dealing with Persistent TPMS Warnings
If you have performed the reset and the light remains illuminated, several factors could be at play:
- Uneven Tread Wear: If tires are significantly worn, they may have slightly different rolling diameters, confusing the system.
- System Debris: Occasionally, road grime or metallic brake dust can interfere with the ABS wheel speed sensor’s ability to read the tone ring. A professional clean of the sensor area may be required.
- Diagnostic Scan: If the light flashes upon startup, the system has identified a hardware fault. In this case, an OBD-II diagnostic scan is necessary to identify if a specific wheel speed sensor is failing.
Does a Spare Tire Trigger the Light?
Yes. If you install a temporary spare tire, the system will almost certainly trigger the TPMS warning light. The spare has a significantly different diameter than your standard tires, causing it to spin at a much higher frequency. Because the indirect system is based on relative speeds, it views this difference as a catastrophic pressure loss. The light will continue to illuminate until the original tire is repaired, re-installed, and a new 2016 Mazda CX-5 TPMS reset is initiated to update the factory default settings.
Never ignore a flashing TPMS light. Unlike a solid light, which is a warning of pressure, a flashing light indicates a failure in the logic of the monitoring system itself. Driving with a broken ABS sensor can also affect your Electronic Stability Control (ESC) and Traction Control systems.
2016 Mazda CX-5 TPMS Reset and Maintenance Tips
Maintaining Correct Tire Pressure
To ensure the system functions at its best, establish a routine. Check your tire pressure at least once a month. Seasonal changes are particularly problematic; for every 10-degree Fahrenheit drop in temperature, tires typically lose 1 PSI. Checking your tires during these transitions prevents “nuisance” lights from appearing. A fresh start after every tire rotation is essential, as the position of the tires changes relative to the sensors, requiring the computer to learn the new layout.
System Updates and Infotainment Integration
While the 2016 model year utilizes a physical reset button for the TPMS, always ensure your infotainment software is up to date if you notice connectivity issues with vehicle alerts. While the TPMS reset is a mechanical action, modern vehicle software bridges the gap between the instrument cluster and the central hub. Regular maintenance, such as tire balancing, also plays a role. A poorly balanced tire can lead to irregular rotational vibrations, which can occasionally trick the TPMS control module into triggering an alert.
Routine Accuracy
Checking pressures monthly ensures the indirect system remains calibrated to the optimal safety baseline.
Rotation Protocol
Always initialize a new 2016 Mazda CX-5 TPMS reset immediately after performing a tire rotation to avoid false alerts.
To summarize, the 2016 Mazda CX-5 utilizes an indirect monitoring system that identifies air pressure loss via ABS wheel speed sensors, meaning there are no internal tire sensors to replace. Correct tire pressure is the absolute foundation for a successful reset process. Always remember that calibration requires a specific driving cycle to finalize—simply pressing the reset button is only half the battle. Finally, a solid light generally indicates a pressure issue, whereas a flashing light usually indicates a system error requiring a professional scan. If your TPMS light continues to flash after following these steps, visit your local Mazda dealer to have the ABS sensor system scanned for deeper faults.
2016 Mazda cx-5 Tpms Reset: Frequently Asked Questions
Why does the TPMS light stay on after I fill my tires?
The TPMS light remains illuminated because the vehicle’s onboard computer requires a manual reset signal to recognize the new pressure values as the new baseline. Simply adding air does not automatically clear the warning state. You must perform the reset procedure to sync the sensor readings with the system’s memory, ensuring the ECU identifies that the tire pressure is now within the acceptable manufacturer range.
Do I need a tool to reset the TPMS on a 2016 CX-5?

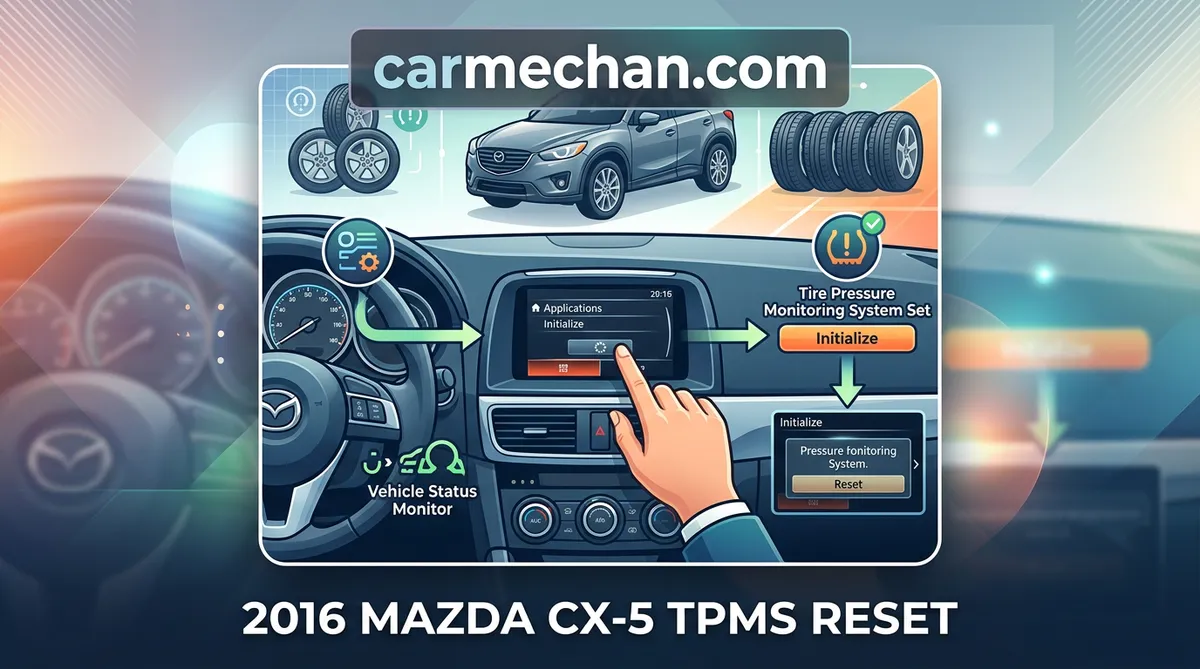

No, you do not need specialized diagnostic tools for a standard reset. The 2016 Mazda CX-5 is designed to be user-resettable using either the physical ‘SET’ button located on the lower driver-side dash or via the vehicle settings menu in the infotainment system. However, if a sensor has completely failed or the battery within the sensor has died, a service tool may be required to register a replacement sensor.
How long does the system take to calibrate after pressing the button?
After initiating the reset, the system typically requires a calibration drive of 15 to 20 minutes at speeds consistently above 15 mph. During this period, the TPMS module actively monitors the rotation speeds and sensor signals to establish the correct baseline. If you stop frequently or drive at very low speeds, the calibration process may take longer or fail to complete successfully.
Can I perform a reset if my tires have different pressures?
It is not recommended. You must ensure all tires are inflated to the exact specifications found on the driver’s door jamb sticker before resetting. Resetting the system while tires are at uneven pressures will ‘teach’ the TPMS computer that the incorrect pressures are the factory standard, which will lead to inaccurate warnings in the future or a failure to detect a true flat tire.
Will a TPMS reset delete my radio or navigation settings?
No, performing a TPMS reset is a specific function within the vehicle’s convenience systems and will not affect any of your stored audio presets, navigation history, or personalized vehicle settings. The reset command is isolated strictly to the Tire Pressure Monitoring System’s memory buffer, allowing you to restore the default factory monitoring state without risk to other onboard electronic features or user preferences.
