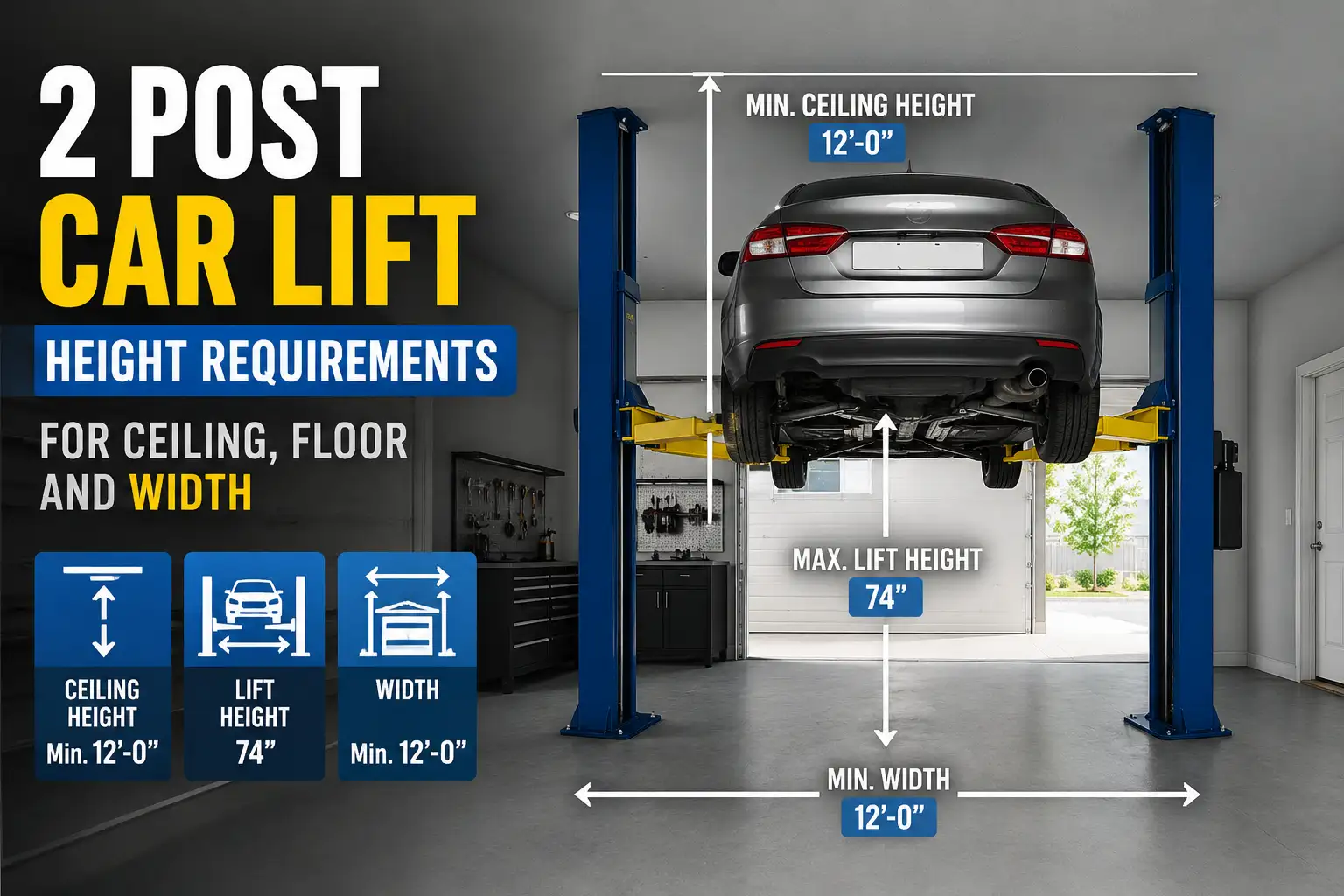

2 Post Car Lift Height Requirements For Ceiling Floor And Width
Last Updated on July 18, 2026 by Albert Duke
A 2 post car lift needs a minimum ceiling height of about 9 feet for the shortest models and 11 to 12 feet for standard capacity lifts. The exact number depends on your lift’s structural height, your vehicle, and the capacity tier you buy.
Ceiling height is only one of three requirements that decide whether a lift fits. Width and floor thickness matter just as much, and most buyers only check one of the three before ordering.This guide breaks down all three, branch by branch, based on the ceiling height you actually have.
What Determines Your 2 Post Lift Ceiling Height
Two post lifts fall into two structural categories, and each one calculates ceiling height differently. Knowing which type you’re looking at explains why published numbers range from 9 feet to 17 feet for lifts that look similar.
Overhead Crossbar Lifts
Overhead lifts have a steel beam connecting the two columns above the vehicle. Your ceiling requirement equals the lift’s published overall height, plus a few inches for lights, sprinklers, or garage door tracks. Vehicle height does not change this number.
Baseplate And Portable Lifts
Baseplate models and portable lifts like mid rise scissor lifts have no overhead beam. Here, the vehicle becomes the height limiter. Use this formula: lift’s maximum rise, plus your vehicle’s height, plus a 6 inch safety buffer.
For example, a BendPak GP-7LCS has a 106.5 inch overall height and a 58 inch lifting height, with a 7,000 pound capacity, and the manufacturer markets it as needing only a 9 foot ceiling. Compare that to a 16,000 to 20,000 pound lift, where the overall height jumps to 199.5 inches, pushing the ceiling requirement to 17 feet. Garage Supply Guys + 2
2 Post Lift Height Requirements By Capacity
Here is how ceiling height scales as lift capacity increases, based on published manufacturer specifications.
| Lift Capacity | Overall Lift Height | Minimum Ceiling Needed |
|---|---|---|
| 7,000 lbs (low overhead) | 106.5 in | 9 ft |
| 7,000 lbs (mid overhead) | 118.5 in | 10 ft |
| 7,000 lbs (standard) | 150 in | 13 ft |
| 10,000 lbs | 148 in | 12 ft 6 in |
| 16,000 to 20,000 lbs | 199.5 in | 17 ft |
Sources: BendPak GP-7LCS spec sheet, BendPak GP-7 spec sheet, and Coats Company 2 post lift specifications. Garage Supply Guys + 2
These numbers assume a clear ceiling. Hanging fixtures like fans and lights are not included in the height requirement, so a 12 foot ceiling with a fan hanging 2 feet down effectively becomes a 10 foot ceiling. HeavyLiftDirect
Most home garages fall between 8 and 10 feet. Here is what to do at each level.
If You Have A 9 Foot Ceiling
A standard overhead 2 post lift will not fit at 9 feet. You need a low overhead model built specifically for this height.
The BendPak GP-7LCS is a 7,000 pound capacity lift with a 106.5 inch overall height and a 58 inch rise, and it carries ALI certification, meaning it passed independent third party safety testing. This capacity covers cars, minivans, and light SUVs, but excludes full size trucks and heavy duty SUVs. Garage Supply GuysBendPak
If you need more lifting height and have slightly more room, the GP-7LC offers a 68 inch rise and fits ceilings as low as 10 feet. Our best car lift for home garage guide compares several low overhead options side by side if you want a full breakdown before buying. BendPak
If You Have An 8 Foot Ceiling
Stop shopping for a full rise 2 post lift at 8 feet. Even low profile 2-post lifts have overall heights of 11 feet or more, so you will not reach full rise with most vehicles. BendPak
A portable lift or mid rise scissor lift is the realistic option here. A QuickJack with a small car like a Miata at 48.4 inches tall needs only 48.4 plus 21.3 inches of rise plus a 3 inch buffer, totaling 72.7 inches, leaving more than 23 inches of clearance under an 8 foot ceiling. BendPak
Trucks are tighter. A full size truck at 75 inches tall needs 99.3 inches total, just over a 96 inch ceiling, so measure carefully before buying. We reviewed a comparable option in our QuickJack BL-7000SLX portable car lift review. BendPak
If You Have An 11 To 12 Foot Ceiling
At 11 to 12 feet, you have the full range of standard capacity 2 post lifts available without compromise. In many cases, two-post lifts are designed to fit under 12-foot-high ceilings at this capacity tier. Carnavigator
Trucks and full size SUVs still need the full 12 feet, not 11. If you’re deciding between capacity tiers in this range, our Weize 2 post car lift review covers a 10,000 pound capacity model in detail.
2 Post Lift Width And Bay Space Requirements
Ceiling height gets the lift in the door. Width determines whether you can actually work around the vehicle once it’s raised.
- Post spacing: most 2 post lifts have an overall width of 10 to 13 feet between and around the columns Mechanics Vault
- Recommended bay width: at least 12 feet wide and 24 feet long around the lift HeavyLiftDirect
- Side wall clearance: 2 to 3 feet on each side for arm swing and door clearance
- Front and rear clearance: 3 to 4 feet for walking around bumpers with the hood or trunk open
For reference, the BendPak GP-7LCS has a 124.25 inch overall width and a 98.25 inch drive-thru clearance, both of which fit inside these general guidelines. BendPak
2 Post Lift Concrete Floor Requirements By Capacity
Your ceiling height means nothing if the concrete underneath can’t hold the lift. Concrete requirements scale with capacity, not just with lift height.
All pre-existing concrete foundations must have a minimum compressive strength of 3,000 PSI, verified with a core sample test, and new concrete poured specifically for a lift should be 4,000 PSI minimum. BendPak
Thickness scales with capacity:
| Lift Capacity | Minimum Slab Thickness | Minimum PSI |
|---|---|---|
| Up to 10,000 lbs | 4 in | 3,000 |
| 12,000 to 15,000 lbs | 6 in | 3,000 |
| 18,000 lbs | 8 in | 3,000 |
Source: BendPak concrete requirements by lift model. Orange Tractor Talks
Anchor bolts must sit at least 6 inches away from any expansion seam, control joint, or crack in the slab, and every 2 post lift requires a single continuous slab, never spanning across separate slabs or expansion seams. If your garage floor is older than 20 years or you don’t know its specs, get a core sample tested before drilling anything. BendPakBendPak
For lifts intended for commercial or insured use, look for the ALI Gold Certification Label, which confirms the lift passed independent structural and safety testing to the ANSI/ALI ALCTV standard. Pitstop Pro
How To Measure Your Garage In 3 Steps

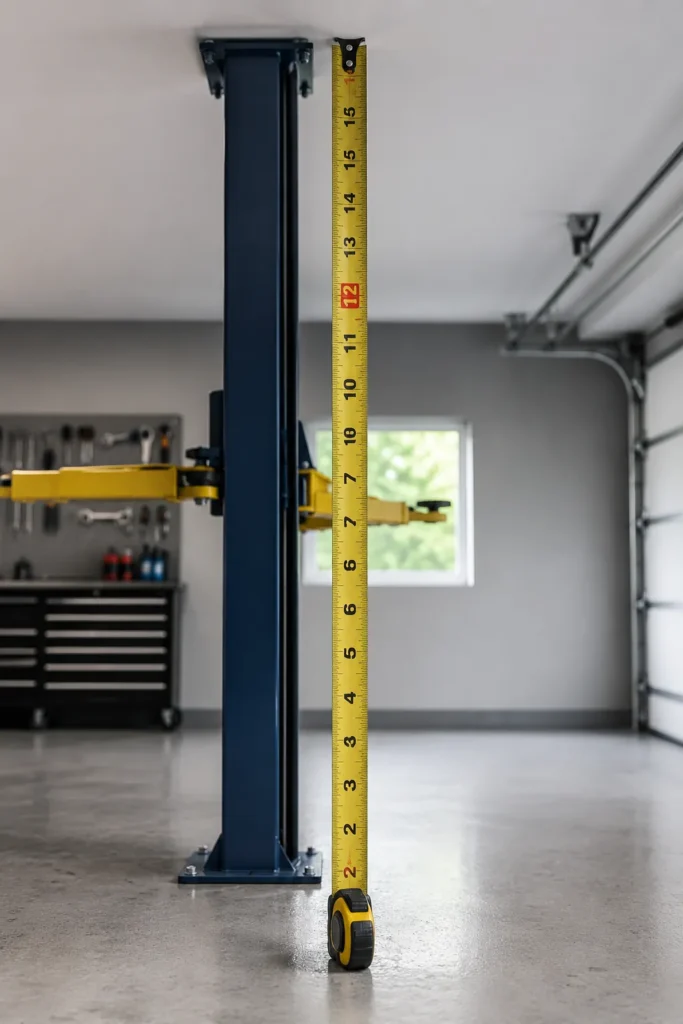

Step 1: Measure floor to ceiling at the exact install spot. Account for any fans, lights, or garage door tracks that hang below the true ceiling line.
Step 2: Measure available width and depth. You need roughly 12 feet wide and 24 feet long for the full bay, including arm swing and walk around space.
Step 3: Check your slab thickness and age. If you’re unsure, order a core sample test before you commit to a lift capacity.
| Your Ceiling | Best Fit | Typical Capacity |
|---|---|---|
| 8 ft | Portable or mid rise scissor lift | Varies by model |
| 9 ft | Low overhead 2 post (GP-7LCS type) | 7,000 lbs |
| 10 ft | Mid overhead 2 post (GP-7LC type) | 7,000 lbs |
| 11 to 12 ft | Standard 2 post | 9,000 to 10,000 lbs |
| 13 ft plus | Full size 2 post | 10,000 lbs plus |
2 Post Lift Garage Fit Checker
| Your Ceiling | Fit Status | Best Lift Type | Typical Capacity |
|---|---|---|---|
| 8 ft | Not Suitable | Portable or mid rise scissor lift | Varies by model |
| 9 ft | Limited Fit | Low overhead 2 post (GP-7LCS type) | 7,000 lbs |
| 10 ft | Limited Fit | Mid overhead 2 post (GP-7LC type) | 7,000 lbs |
| 11 to 12 ft | Best Fit | Standard 2 post | 9,000 to 10,000 lbs |
| 13 ft plus | Best Fit | Full size 2 post | 10,000 lbs plus |
Best Fit means the lift reaches full rise without modification. Limited Fit means the lift installs safely but may not reach full standing height under every vehicle. Figures based on BendPak and Coats Company published specifications.
Choosing The Right Ceiling Height For Your Lift
The right 2 post car lift height requirement depends on three things working together: your ceiling, your bay width, and your concrete floor. Ceiling height alone won’t tell you whether a lift will actually work in your space.
Measure all three before you shop, not after. A 9 foot ceiling doesn’t rule out a 2 post lift, it just narrows your model choice to low overhead options built for that height.
Once you know your numbers, compare them against specific models in our best car lift for home garage guide to find the right capacity for your vehicles.
Frequently Asked Questions About 2 Post Lift Height
What is the minimum ceiling height for a 2 post lift?
The shortest overhead 2 post lifts need about 9 feet of ceiling clearance. Standard capacity lifts in the 9,000 to 10,000 pound range typically need 11 to 12 feet.
Can I install a 2 post lift with an 8 foot ceiling?
Not a full rise 2 post lift. A portable lift or mid rise scissor lift with 21 to 48 inches of rise is the realistic option at 8 feet.
How much wider than the lift itself does my garage need to be?
Plan for at least 12 feet of total bay width, even though the posts themselves may only be 9 to 11 feet apart, to leave room for arm swing and door clearance.
How thick does my concrete floor need to be for a 2 post lift?
Most lifts up to 10,000 pounds need a 4 inch slab at 3,000 PSI minimum. Heavier lifts in the 12,000 to 18,000 pound range need 6 to 8 inches.
Do I need ALI certification for a home garage lift?
It isn’t legally required for private, non commercial garages, but an ALI certified lift confirms independent third party safety testing, which matters if you ever sell the property or file an insurance claim.
