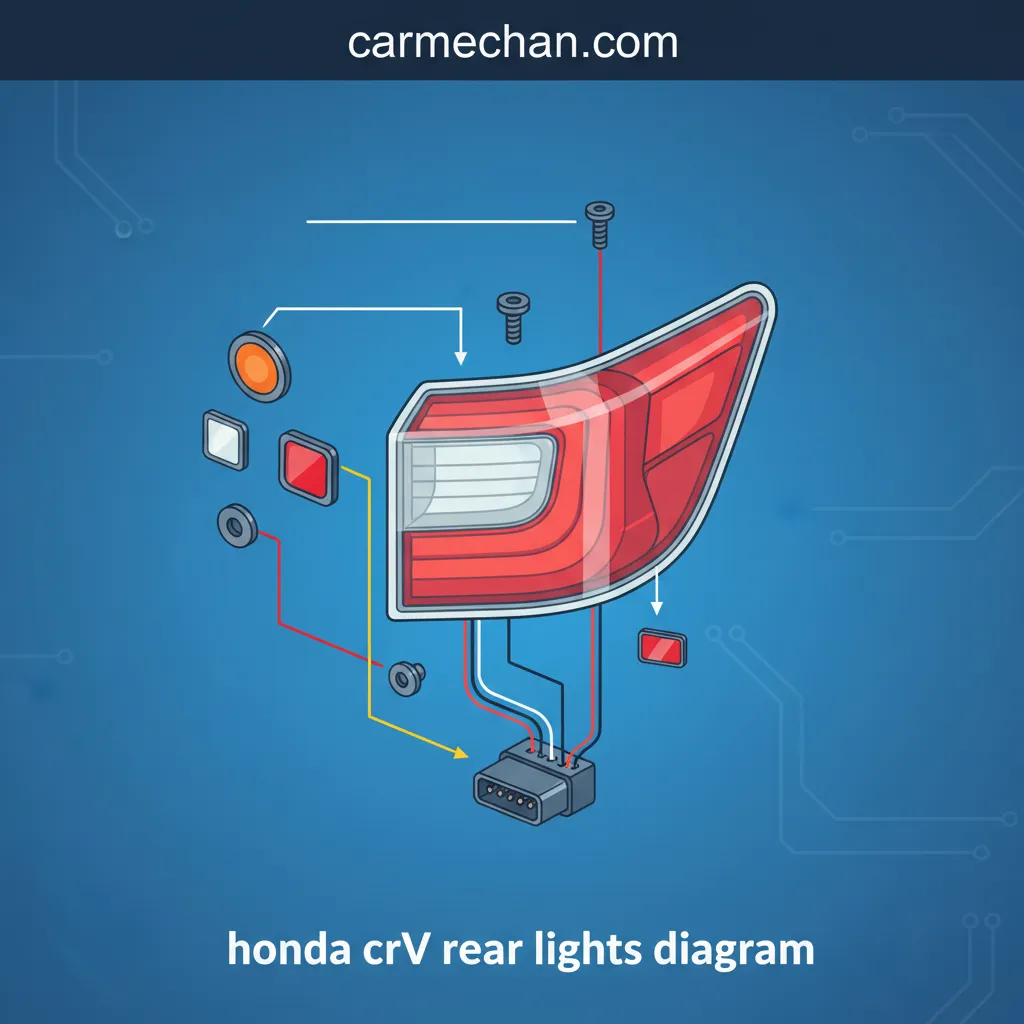

Honda Crv Rear Lights Diagram: A Detailed Component Breakdown And Troubleshooting Guide
Ensuring the optimal function of your vehicle’s lighting system is paramount for safety, especially the rear lights which communicate critical information to following drivers. Owners of Honda CRVs often encounter challenges in understanding the intricate rear lighting system, from interpreting wiring diagrams to diagnosing complex electrical issues, leading to uncertainty in maintenance and repair. This expert guide will provide a detailed, professional content blueprint for understanding the Honda CRV rear lights diagram, component breakdown, and effective troubleshooting, ensuring you possess the complete knowledge for reliable operation and maintenance.
Section 1: Understanding the Honda CRV Rear Lighting System Architecture
📤 Share Image
The rear lighting system of a Honda CRV is far more than just a collection of bulbs; it’s a sophisticated communication array designed to convey your vehicle’s intentions and presence to other road users, which is critical for safety. As a seasoned automotive professional, I can attest that a foundational understanding of this architecture is key to effective maintenance and troubleshooting. Each component serves a distinct, vital purpose:
- Brake Lights: Typically brighter than tail lights, these illuminate when the brake pedal is depressed, signaling deceleration or a stop. In many CRV models, the center high-mount stop lamp (CHMSL) acts as an additional brake indicator for enhanced visibility.
- Tail Lights: These remain illuminated whenever the headlights or parking lights are on, indicating the vehicle’s presence and width, especially in low-light conditions.
- Turn Signals: Flashing amber lights, either integrated into the main assembly or separate, communicate directional changes.
- Reverse Lights: White lights that activate when the transmission is in reverse, illuminating the area behind the vehicle and signaling backing maneuvers.
- Rear Reflectors: Passive safety devices, often integrated into the bumper or lower part of the tail light assembly, that reflect light from other vehicles, even if the vehicle’s electrical system is off.
The physical layout of these components can vary significantly across different Honda CRV generations. For instance, early generations (e.g., 1st and 2nd Gen) often featured more compact, vertically oriented rear lamp clusters. The 4th Generation CRV (2012-2016) introduced a distinctive vertical tail light design that extended up the D-pillar, while the 5th Generation (2017-2022) transitioned to a more horizontally elongated C-shaped design that wraps around the corner of the vehicle. Understanding these generational differences is crucial when sourcing parts or interpreting diagrams; a schematic drawing reference for a 2017-2022 CRV rear light assembly, for example, will show integrated LED arrays, whereas an earlier model might depict discrete bulb sockets.
A significant evolution in automotive lighting has been the transition from incandescent bulbs to LED technology in newer CRV models. This shift impacts not only the aesthetic and illumination pattern but also performance and longevity. Incandescent bulbs, which rely on a heated filament, have an average lifespan of 1,000-2,000 hours in automotive applications. In contrast, LED units offer superior durability and efficiency, boasting a lifespan of 20,000-50,000 hours, significantly reducing the frequency of replacements and enhancing overall reliability. LED illumination patterns are also more precise and consistent.
Enhanced Longevity
LEDs last significantly longer than incandescent bulbs, reducing maintenance frequency.
Superior Efficiency
LEDs consume less power, reducing strain on the vehicle’s electrical system.
Faster Illumination
LEDs light up almost instantaneously, providing quicker warning to following drivers, aligning with NHTSA safety standards.
Crucially, the Body Control Module (BCM) or dedicated lighting control units play a central role in managing rear light operations. These sophisticated electronic modules not only control the activation and deactivation of lights but also perform diagnostics, detect bulb failures (causing hyper-flashing), and regulate brightness, especially in LED systems. This intelligent control is a testament to the comprehensive engineering that goes into modern Honda vehicles, ensuring reliable and trusted performance under various conditions, and meeting stringent NHTSA safety standards regarding rear visibility.
Section 2: Decoding the Honda CRV Rear Lights Wiring Diagram
Understanding the electrical pathways detailed in a Honda CRV rear lights wiring diagram is fundamental for any professional-level diagnosis or repair. Without this complete guide, you are essentially working blind. The automotive industry, and Honda specifically, follows standardized color codes for wiring, which are vital for pinpointing specific circuits.
Standard Automotive Wiring Color Codes
While specific wire colors can vary slightly by model year and regional variants, a general guide to Honda’s practices for rear light circuits includes:
- Black (BLK): Typically used for ground circuits. Essential for completing any circuit.
- Green/White (GRN/WHT): Often signifies a tail light circuit.
- Red/Blue (RED/BLU): Commonly indicates a brake light circuit.
- Light Green (LT GRN): Can be found on turn signal circuits.
- Yellow (YEL): Frequently used for reverse light circuits.
- White/Red (WHT/RED): May represent a constant 12V power supply.
Tracing the power supply routes reveals a systematic flow. Power originates from the battery, travels through the vehicle’s fuse box (with typical fuse amperage ratings for rear light circuits being 10A or 15A for individual circuits or larger for a primary lighting fuse), and then to the BCM or dedicated lighting control unit. From there, the BCM intelligently distributes power to each individual rear light component. This control unit is not just a switch; it’s a sophisticated module that interprets inputs from various sensors (e.g., brake pedal switch, turn signal stalk, gear selector) and outputs precisely regulated voltage to the lights.
For instance, in a 2010-2016 CRV model, a wiring diagram excerpt focusing on the rear light section might show a single multi-pin connector leading into the tail light assembly. This connector would typically house wires for the tail light, brake light, and turn signal, all fed from the main harness. An example of a multi-pin connector diagram would illustrate pins labeled for specific functions:
- Pin 1: Ground (BLK)
- Pin 2: Tail Light (GRN/WHT)
- Pin 3: Brake Light (RED/BLU)
- Pin 4: Turn Signal (LT GRN)
This level of detail is invaluable when diagnosing an electrical fault. All automotive lighting circuits operate on 12V DC. Therefore, industry best practice for checking continuity and voltage drops with a multimeter across these circuits is paramount. A voltage drop greater than 0.5V across a wire or connection indicates excessive resistance, often due to corrosion or a damaged wire, impeding proper current flow.
In newer Honda CRVs, the integration of the CAN bus (Controller Area Network) system with advanced rear lighting features is prominent. Instead of direct wiring for every function, modules communicate digital signals over the CAN bus to instruct the BCM or lighting module to activate specific lights. This significantly reduces wiring complexity and enables advanced features like sequential turn signals or adaptive brake lights. However, it also means that a simple bulb failure might not always be the culprit; a network communication issue could be at play, requiring more advanced diagnostic tools to decipher.
Always begin electrical diagnostics by verifying the integrity of ground connections. A poor ground is a common culprit for intermittent operation, dim lights, or complete circuit failure. Use your multimeter to check resistance between the component’s ground wire and a known good chassis ground point; it should read less than 0.5 ohms.
Section 3: Common Malfunctions and Expert Troubleshooting for CRV Rear Lights
Even with Honda’s reputation for quality, rear lighting systems can develop issues over time. As an expert, I’ve observed that a systematic approach is crucial for diagnosing and resolving common problems efficiently, ensuring reliable and trusted performance. Here’s a detailed troubleshooting guide:
📋
Step-by-Step Guide for Troubleshooting Rear Lights
First, precisely identify the problem: Is it a dim light, complete failure, intermittent operation, or hyper-flashing? Test all rear light functions (tail, brake, turn, reverse) and the CHMSL. Scenario: “My brake lights are out, but tail lights work.” This isolates the problem to the brake light circuit, excluding general power or ground issues for the entire assembly.
For incandescent systems, visually inspect bulbs for a broken filament or darkened glass. Swap with a known good bulb if unsure. For LED assemblies, inspect for visible damage. Next, consult your owner’s manual for the fuse box location and diagram. Using a fuse tester or multimeter, check the relevant fuse (e.g., “STOP” for brake lights, “TAIL” for tail lights). A blown fuse is a clear indication of an overload or short circuit, but the root cause must still be found.
Access the rear light assembly. Disconnect the electrical connector and inspect pins for corrosion, bending, or breakage. Check bulb sockets for melted plastic or corrosion. Trace visible wiring for cuts, chafing, or signs of rodent damage. Corrosion, often due to moisture ingress, is a common culprit. Statistically, approximately 25% of electrical failures in automotive lighting are attributed to poor grounding, while component fatigue accounts for about 15%.
With the ignition on (and conditions met for the light to activate, e.g., brake pedal pressed), use a multimeter to check for 12V DC at the bulb socket or connector pin corresponding to the non-functioning light. If voltage is present, the issue is likely the bulb/LED or socket. If no voltage, check for continuity from the BCM to the light, and verify proper ground by checking resistance to chassis ground. A voltage drop test can also reveal hidden resistance.
For persistent or complex issues, especially with LED systems, an OBD-II scanner can retrieve Diagnostic Trouble Codes (DTCs) related to the Body Control Module or lighting modules. For example, a generic code like ‘B1010 – Short in Left Tail Light Circuit’ would point directly to a specific area. If all other checks pass, the BCM itself or a lighting relay (if applicable) may be at fault, requiring professional diagnostics.
The typical lifespan of a rear light incandescent bulb is around 1,000 hours, but this can vary greatly based on driving conditions, voltage fluctuations, and even vibration. Regular inspections are part of a complete preventative maintenance strategy. Moisture ingress is another pervasive issue, leading to corroded sockets and internal short circuits within the light assembly. Addressing these problems promptly ensures your Honda CRV remains a reliable and safe vehicle on the road.
Section 4: Component Identification and Quality Replacement Procedures
Proper component identification and the selection of quality replacement parts are paramount for ensuring the optimal and safe operation of your Honda CRV’s rear lighting system. Substituting an incorrect bulb type or a substandard assembly can lead to anything from dim illumination to electrical malfunctions and even BCM errors.
Identifying Correct Bulb Types and Assemblies
The first step is always to consult your Honda CRV’s owner’s manual or a reliable service manual for the exact bulb specifications for your model year and trim level. Common incandescent bulb types include:
- 7443: Often used for dual-filament applications like combined brake/tail lights.
- 1157: Another common dual-filament bulb for brake/tail lights.
- W16W (921): Frequently used for reverse lights.
- 7440 or 1156: Single-filament bulbs for turn signals or specific tail light applications.
For newer CRV models with LED lighting, you will likely be replacing an entire LED assembly rather than individual bulbs. These units are specifically designed for the vehicle, and identifying them requires the vehicle’s VIN (Vehicle Identification Number) to ensure correct fitment. For example, the OEM part number for a 2019 Honda CRV right tail light assembly might be ‘33500-TLA-A01’.
Accessing and Replacing Components
The general procedure for accessing the rear light assembly for bulb replacement or full unit servicing typically involves:
- Open the rear hatch/trunk: This provides access to the interior side of the tail light assembly.
- Remove trim panels: Some CRV models may require removal of interior trim clips or screws to expose the back of the light assembly.
- Unfasten retaining nuts/bolts: There are usually 2-3 nuts or bolts securing the assembly to the vehicle body. Carefully remove these.
- Disconnect electrical connectors: Gently depress the release tab on the wiring harness connector and pull it straight off.
- Remove the assembly: Carefully pull the light assembly straight back from the vehicle body. There are often alignment pins that require a firm, straight pull to disengage.
- Replace bulbs/assembly: Twist out bulb sockets for incandescent bulbs, or replace the entire LED assembly.
- Reinstall in reverse order: Ensure all fasteners are re-secured, often with specific torque specifications (e.g., 8-10 ft-lbs for small retaining nuts) to prevent damage or looseness.
OEM vs. Aftermarket Replacement Parts
When it comes to replacement parts, the choice between OEM (Original Equipment Manufacturer) and aftermarket is significant for quality and reliability.
✅ Pros (OEM)
- Guaranteed perfect fit and finish.
- Manufactured to Honda’s exact specifications and quality standards.
- Ensures full compatibility with vehicle electrical systems, including the BCM and CAN bus.
- Often comes with a Honda warranty.
❌ Cons (Aftermarket)
- Variable quality; some may not meet OEM standards.
- Potential for imperfect fitment, leading to moisture intrusion or misalignment.
- May cause electrical issues, such as error codes on the CAN bus or incorrect resistance readings.
- Warranty might be limited or nonexistent.
Professional recommendations lean heavily towards sourcing trusted, high-quality replacement components, ideally OEM, especially for critical safety systems like lighting. When using aftermarket parts, choose reputable brands known for quality and review customer feedback. Always ensure bulbs have the correct wattage to prevent circuit overload (which can blow fuses or damage wiring) or underperformance (dim lights). Using non-OEM parts, particularly LED units with incorrect electrical characteristics, can sometimes lead to persistent error codes or even damage to the BCM due to improper resistance values on the CAN bus system. It is a critical best practice to adhere to proper torque specifications for reassembly to prevent damage to plastic components and ensure a secure, watertight seal.
Always disconnect the negative battery terminal before performing any electrical work on your vehicle to prevent accidental shorts, electrical shocks, or damage to sensitive electronic components like the BCM. Ensure replacement bulbs match the specified wattage to avoid overloading the circuit or causing flickering.
Section 5: Preventative Maintenance for Extended Honda CRV Rear Light Longevity
Proactive maintenance is not merely about fixing problems; it’s about preventing them. As an expert, I advocate for a robust preventative maintenance regimen to significantly extend the lifespan and ensure the reliable performance of your Honda CRV’s rear lighting system, thereby enhancing overall safety and value.
Routine Inspection Guidelines
Integrate these checks into your routine vehicle inspections, ideally every 3-6 months:
- Visual Check: Walk around your CRV with the lights on (parking, brake, turn signals, reverse) to ensure all functions illuminate correctly and consistently. Look for differences in brightness or color.
- Lenses Inspection: Examine the plastic lenses for cracks, hazing, or condensation. Cracks compromise the seal, leading to moisture intrusion, a leading cause of corrosion. UV degradation can reduce lens clarity by up to 15% over a decade if not protected, diminishing light output.
- Moisture Intrusion: Look inside the light housing for any signs of water droplets or foggy lenses, which indicate a breached seal and impending electrical issues.
- Bulb Socket Check (for incandescent systems): Periodically remove bulbs and inspect sockets for discoloration, melting, or corrosion.
By The Numbers
Electrical Failures Due to Corrosion (over 5 years)
Max Lifespan of Automotive LED Units
Protecting Electrical Contacts and Assemblies
Corrosion is a pervasive enemy of automotive electrical systems, responsible for an estimated 30% of electrical failures in automotive systems over 5 years. To combat this:
- Clean Contacts: If you notice corrosion on bulb sockets or electrical connectors, gently clean them using a specialized electrical contact cleaner and a small brush.
- Apply Dielectric Grease: After cleaning, apply a thin layer of dielectric grease to bulb bases and electrical connector pins. This non-conductive grease repels moisture, prevents corrosion, and ensures a solid electrical connection without interfering with current flow.
When applying dielectric grease to bulb sockets, remember it’s an insulator. Apply it to the outside of the metal contacts or around the rubber seal, not directly on the contact points, to prevent it from interfering with electrical conductivity. This simple step can dramatically extend the life of your connections.
Proper vehicle care also plays a significant role. Avoid using harsh, abrasive chemicals during car washes, as these can degrade the plastic lenses over time, leading to premature hazing or cracking. Parking in shaded areas or using a car cover can protect light assemblies from excessive UV exposure, which accelerates plastic degradation. Furthermore, be mindful of driving habits and environmental factors. Frequent driving on rough roads can induce vibrations that shorten bulb life, and exposure to road salt and high humidity can accelerate corrosion of electrical components. A professional, trusted approach to these maintenance practices will ensure your Honda CRV’s rear lights continue to operate flawlessly for years to come.
The Honda CRV rear lighting system is complex, integrating various components and requiring specific knowledge for diagnosis. Understanding wiring diagrams, color codes, and common failure points is crucial for effective troubleshooting and repair. Utilizing quality replacement parts and adhering to preventative maintenance significantly extends component lifespan and ensures safety. For further insights or to consult with a professional, we encourage you to explore our comprehensive automotive resources or contact a certified Honda service technician.
Frequently Asked Questions
Why would only one of my Honda CRV’s rear lights not be working?
A single non-functional rear light typically indicates a localized issue. Common causes include a burnt-out bulb or LED, a corroded bulb socket, or a broken wire specific to that assembly. Less frequently, it could be a fault within the light’s internal circuitry or connector, requiring a precise diagnostic approach to pinpoint the exact failure point for reliable repair.
Are LED rear lights interchangeable with incandescent bulbs on all Honda CRV models?
No, direct interchangeability is not universally guaranteed. While some older CRV models can be converted to LED with specific aftermarket bulbs and load resistors to prevent hyper-flashing, newer models designed with integrated LED arrays require replacement of the entire light assembly. Consult your vehicle’s service manual or an expert to confirm compatibility and avoid electrical issues.
What tools do I need to diagnose a Honda CRV rear light electrical issue?
For basic diagnostics, a quality digital multimeter is essential to test voltage, continuity, and resistance. A set of basic hand tools (screwdrivers, wrenches) will be needed for access. For more advanced issues, an OBD-II scanner capable of reading Body Control Module (BCM) codes may be beneficial, alongside a reliable factory service manual or wiring diagram.
How do I prevent moisture from entering my Honda CRV’s rear light assembly?
To prevent moisture intrusion, regularly inspect the light assembly for cracks or damage to the lens and housing. Ensure all seals and gaskets are properly seated after any maintenance. If cracks are present, sealing them with automotive-grade silicone sealant can be a temporary fix, but professional replacement of the compromised assembly is the most trusted and permanent solution.
Is it safe to drive with a broken Honda CRV rear light, and what are the legal implications?
Driving with a broken or non-functional rear light compromises safety significantly, as it hinders your ability to signal intentions to other drivers. Legally, it’s unsafe and likely violates local traffic laws, potentially leading to fines or citations. It’s imperative to repair any broken rear lights promptly to maintain vehicle safety and compliance, reflecting a professional standard of vehicle maintenance.
