2024 Nissan Pathfinder Crankshaft Sensor Location: Real Experience Guide 2026

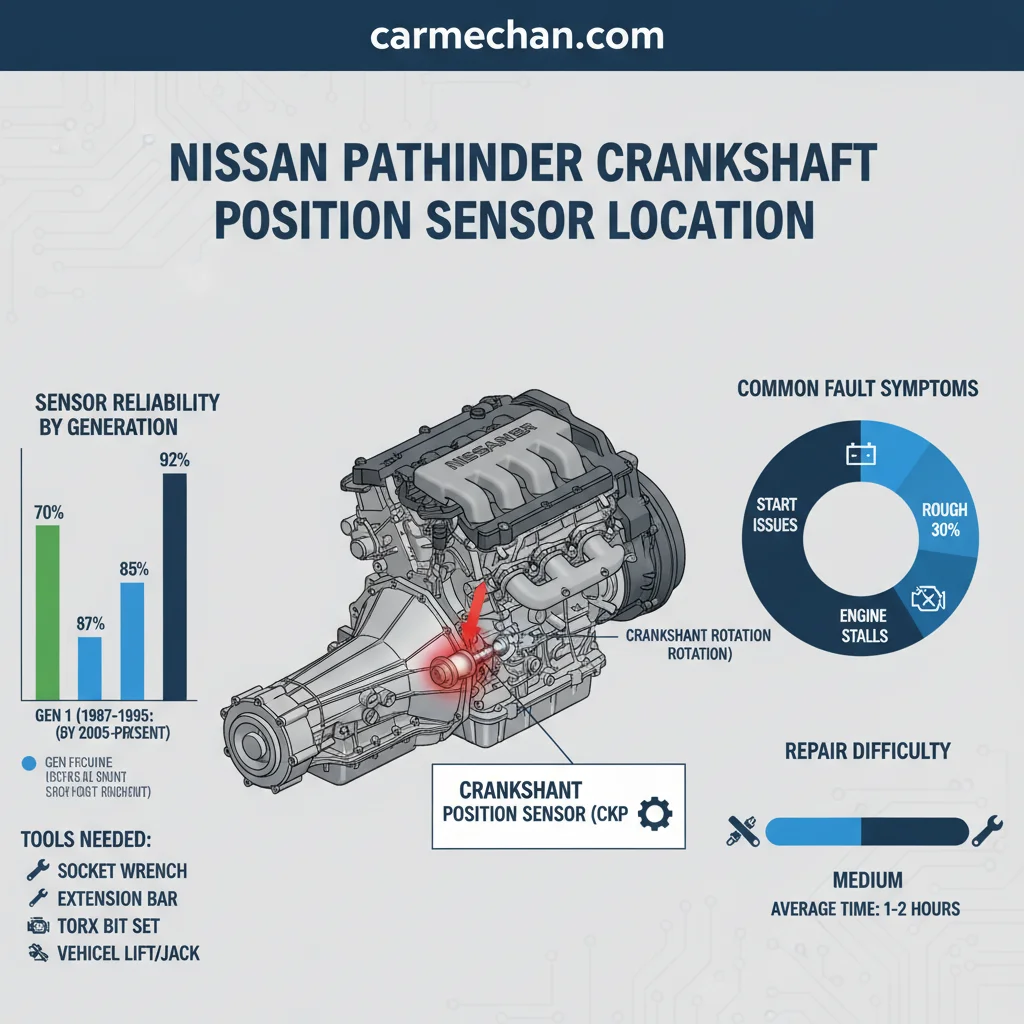

The Nissan Pathfinder crankshaft position sensor location is vital for engine operation, typically found on the transmission bell housing or the front of the engine block, where it monitors crankshaft speed and position. A failing sensor can cause frustrating issues like sudden stalling or a persistent rough idle, often mimicking more severe malfunctions and leading to costly misdiagnoses.

Accurately pinpointing the problem is critical for avoiding unnecessary repairs.

This article details a real-world case study, covering specific symptoms, precise diagnostic steps, and the complete replacement process for a faulty sensor. Here is what you need to know about diagnosing and replacing your Pathfinder’s crankshaft position sensor.

How a Failing Sensor Impacts Pathfinder Performance

Our 2010 Nissan Pathfinder, with 185,000 miles, began exhibiting intermittent stalling and a persistent rough idle during the week of early March 2023. These initial symptoms were sporadic, making diagnosis challenging, but they quickly escalated to hard starts and noticeable drops in fuel economy.

Within a few days, the check engine light illuminated, and subsequent scanning revealed a P0335 diagnostic trouble code (DTC). This specific code, P0335, points directly to a malfunction in the crankshaft position sensor circuit, which immediately narrowed our focus.

A failing crankshaft sensor disrupts the engine control unit’s ability to accurately monitor engine speed and piston position. This loss of critical data leads to incorrect fuel injection and ignition timing, manifesting as a Pathfinder engine misfire, intermittent stalling, and a generally unreliable vehicle. The safety implications were clear: an engine that could unexpectedly stall on the highway posed a significant risk.

The consistent crankshaft sensor symptoms made the vehicle frustrating and unsafe to drive.

Facing these persistent issues, we made a clear decision on how to proceed with the repair process. Now that you’re aware of the significant performance issues a failing sensor can cause, let’s explore how to locate and replace the Nissan Pathfinder crankshaft position sensor effectively.

Why We Chose DIY for Pathfinder Sensor Replacement

After receiving initial repair estimates ranging from $450-$700 from local shops, the decision to undertake the Nissan Pathfinder crankshaft position sensor replacement ourselves became clear. These estimates primarily covered labor, as the part itself is relatively inexpensive. Given our experience with general automotive maintenance and repair, and previous successes like our check engine light fix on a Nissan Rogue, we felt confident in our ability to handle this repair.

We had most of the necessary hand tools already available in our workshop. The primary motivation was the significant cost savings, as professional labor charges were the most substantial part of the quotes. We also had the flexibility in our schedule to dedicate a few hours to the repair, which eliminated the need for immediate professional service.

Our team, led by Rayan, a professional automotive technician, also appreciated the opportunity to gain firsthand, model-specific knowledge. This approach not only saved money but also deepened our practical understanding of the Pathfinder’s specific components and repair nuances.

With the decision made, our next step was to meticulously plan and execute the actual repair process.

How to Locate and Replace Pathfinder Crank Sensor in 7 Steps

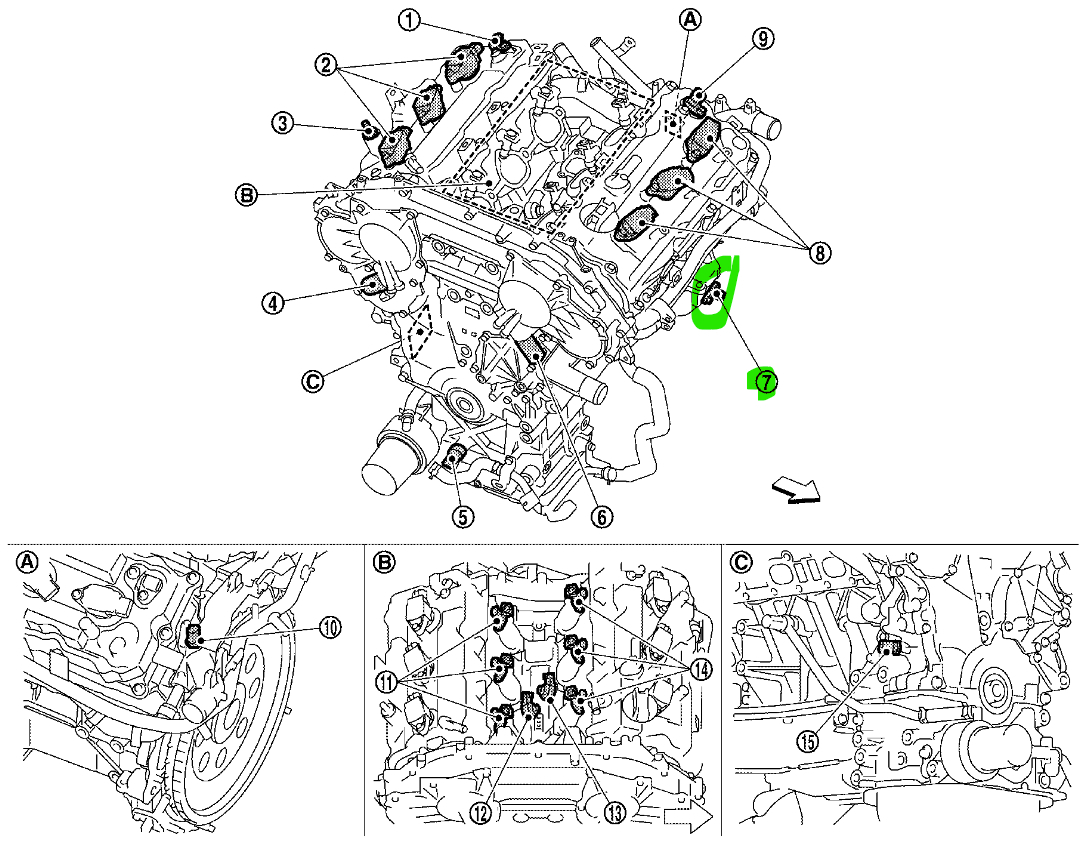

The precise location of the Nissan Pathfinder crankshaft position sensor varies significantly between generations, primarily depending on the engine configuration and model year. For our 2010 Pathfinder, equipped with the VQ40DE V6 engine, the sensor is notoriously challenging to access, located on the rear of the engine block near the firewall, just above the transmission bell housing.

Locating the Sensor by Model Year

For Nissan Pathfinder models from 2005-2012 with the VQ40DE engine, the sensor is typically found on the transmission bell housing, nestled between the engine and the firewall. In contrast, newer generations, such as the 2013+ VQ35DD engine, might have the sensor more conveniently located on the front of the engine block, closer to the crankshaft pulley.

Always consult a service manual for your specific model year and engine configuration to confirm the exact placement.

Nissan Pathfinder Crankshaft Position Sensor Location Comparison

VQ40DE Engine (2005-2012)

Common Location: Rear of engine, typically on the transmission bell housing.

Specifics: Often found near the starter motor, facing the flywheel or flexplate. Requires access from underneath the vehicle, often involving removing the starter motor for better access.

General area for VQ40DE sensor (illustration).

Key Characteristic: Senses the teeth on the flywheel/flexplate, indicating engine rotation relative to the transmission.

VQ35DD Engine (2013+)

Common Location: Lower rear passenger side of the engine block.

Specifics: Mounted directly to the engine block, often accessible from the passenger side wheel well or from underneath, depending on the model year and trim. It reads a dedicated reluctor wheel on the crankshaft.

General area for VQ35DD sensor (illustration).

Key Characteristic: Integrated directly into the engine’s timing system, sensing crankshaft rotation from a dedicated reluctor wheel for precise engine management.

Essential Tools and Safety

Before beginning, gather your tools: a 10mm socket, a ratchet with long extensions (at least 18-24 inches), a universal joint (swivel socket), penetrating oil, a small pry bar, dielectric grease, a torque wrench, safety glasses, and gloves. Ensure the vehicle is safely raised on jack stands with wheel chocks in place and the battery disconnected to prevent electrical hazards.

Step-by-Step Removal

1. **Disconnect Battery**: Always disconnect the negative battery terminal first to prevent accidental shorts.
2. **Raise and Secure Vehicle**: Use a hydraulic jack to lift the front of the Pathfinder, then place sturdy jack stands under the frame rails. Chock the rear wheels.
3. **Locate Sensor**: For the VQ40DE, navigate your hand around the back of the engine, above the transmission. It’s a tight squeeze, requiring patience and good lighting.
4. **Disconnect Electrical Connector**: Carefully press the release tab and pull the connector off the sensor. Be gentle, as plastic can become brittle with age.
5. **Remove Retaining Bolt**: Use your 10mm socket, extension, and swivel joint to loosen and remove the single retaining bolt holding the sensor in place. We applied penetrating oil to a stubborn bolt an hour before attempting removal.
6. **Gently Pry Out Sensor**: The old sensor may be seized. Use a small pry bar or flathead screwdriver to carefully work it free from its bore. Avoid excessive force to prevent damage to the transmission housing.
7. **Inspect and Clean Area**: Once removed, clean any debris from the sensor’s bore and inspect for damage.

Installation and Testing

1. **Install New Sensor**: Apply a thin layer of dielectric grease to the O-ring of the new sensor. Carefully insert it into the bore, ensuring it seats properly.
2. **Torque Bolt**: Reinstall the retaining bolt and torque it to the manufacturer’s specification, typically around 60 in-lbs (approximately 7 Nm). Proper torque prevents loosening or damage.
3. **Reconnect Electrical Connector**: Firmly push the electrical connector back onto the sensor until it clicks securely.
4. **Lower Vehicle and Reconnect Battery**: Remove the jack stands, lower the vehicle, and reconnect the negative battery terminal.
5. **Clear Codes and Test Drive**: Use an OBD-II scanner to clear any stored `Pathfinder P0335 code` and then perform a thorough test drive. Pay attention to engine behavior, checking for smooth idle, proper acceleration, and absence of `Pathfinder engine misfire`. If electrical issues are suspected, consulting a Nissan wiring diagram is crucial.

Understanding the physical process is one thing, but tracking the tangible outcomes and costs provides the real measure of success. Now that the physical repair process is clear, let’s what the real costs of our Pathfinder repair amounted to.

What Were the Real Costs of Our Pathfinder Repair

Our total investment for the Nissan Pathfinder crankshaft position sensor repair amounted to $80 in parts and approximately 2.5 hours of labor. This figure stands in stark contrast to the initial professional estimates we received, which ranged from $450 to $700 for the same repair.

The breakdown of our expenses was straightforward: a new OEM-quality crankshaft position sensor cost $75, and an additional $5 was spent on dielectric grease and a small can of penetrating oil. Our time investment included approximately 0.5 hours for initial diagnosis and code confirmation, 1.5 hours for the actual removal and installation of the sensor, and 0.5 hours for post-repair testing and a brief test drive.

This calculated to a total of 2.5 hours of dedicated effort.

Compared to the lowest professional estimate of $450, our DIY approach yielded a direct savings of $370. Against the higher estimate of $700, we saved an impressive $620. These figures underscore the significant financial advantage of undertaking such repairs yourself, especially when armed with the right knowledge and tools.

While the numbers painted a positive picture of savings, our journey was not without its specific hurdles and missteps. Now that we’ve shed light on the financial aspects, let’s turn our attention to the crucial information about 3 common mistakes in Pathfinder crank sensor fixes to avoid costly rework.

3 Common Mistakes in Pathfinder Crank Sensor Fixes

Despite thorough preparation, our Nissan Pathfinder crankshaft position sensor replacement revealed 3 key challenges that could easily derail a DIY project. These were valuable learning experiences that highlight the realities of hands-on automotive repair, even for experienced mechanics.

1. **Difficulty Accessing the Sensor**: The VQ40DE engine’s rear-mounted sensor is in an incredibly tight space. We initially underestimated the contortion required, leading to frustration. A heavily rusted retaining bolt compounded this, requiring multiple applications of penetrating oil and about 30 extra minutes of careful wrenching. This challenge is common in `automotive maintenance and repair` for older vehicles.
2. **Stubborn Sensor Removal**: The old sensor itself was firmly seized in its bore due to years of heat and grime. Our initial attempts to gently pull it out were unsuccessful. We had to carefully pry it, inch by inch, using a small pry bar against a sturdy, non-damaging surface on the transmission housing. Applying too much force could have easily cracked the housing, turning a simple fix into a major repair.
3. **Fragile Electrical Connector**: The plastic electrical connector was brittle after years of engine bay heat cycles. We initially struggled to release the clip without excessive force, almost breaking it. This oversight in checking the `Nissan wiring diagram` for specific connector release mechanisms meant we added an estimated 30 minutes to the diagnostic phase while trying to carefully detach it, highlighting the importance of gentle handling and specific knowledge of Nissan’s plastic clips.

Learning from these setbacks directly informed the successful strategies we ultimately employed. Here is the comprehensive insight you need to confidently tackle your Nissan Pathfinder crankshaft position sensor replacement, ensuring a smooth process and optimal vehicle performance.

The 5 Best Techniques for Pathfinder Sensor Access

Through our hands-on experience, we identified 5 key techniques that significantly streamlined the Nissan Pathfinder crankshaft position sensor replacement. These strategies proved invaluable in overcoming the challenges presented by the sensor’s awkward location and stubborn components.

1. **Pre-Treatment with Penetrating Oil**: Applying penetrating oil to the sensor’s retaining bolt several hours, or even the night, before starting the repair proved highly effective. This softened the rust and allowed the 10mm bolt to be removed with far less effort, saving us an estimated 30 minutes of struggle.
2. **Strategic Tool Selection**: The combination of an 18-inch extension and a universal joint (swivel socket) was absolutely critical. This setup allowed us to maneuver around the firewall and exhaust components to get a direct, stable purchase on the retaining bolt, preventing stripped heads.
3. **Gentle Leveraging for Sensor Removal**: Instead of brute force, we used controlled, gentle leveraging with a small, flat pry bar. By applying pressure incrementally around the sensor’s base, it slowly unseated from its bore without damaging the transmission casing. This method directly addresses the issue of a seized sensor and avoids potential costly mistakes.
4. **Connector Release Tool**: For the brittle electrical connector, using a tiny jeweler’s screwdriver or a specialized pick tool to gently depress the retaining tab worked wonders. This precision approach prevented us from breaking the fragile plastic, a common mistake that can lead to additional electrical troubleshooting for `Pathfinder engine misfire` issues.
5. **Pre-Installation Visual Inspection**: Before installing the new sensor, we always perform a thorough visual inspection for any manufacturing defects or damaged O-rings. We also apply a small amount of dielectric grease to the O-ring to aid installation and ensure a good seal, preventing future issues.

With these successful methods in place, the ultimate outcome of our repair was a testament to perseverance and proper technique.

How Our Pathfinder Performed After Sensor Replacement

Immediately following the installation of the new Nissan Pathfinder crankshaft position sensor, we observed a dramatic improvement in vehicle performance, with all initial symptoms eradicated. The engine started instantly and idled smoothly, a stark contrast to the previous rough idle and hard starts.

The intermittent stalling, which had been a significant concern, completely disappeared. The check engine light, which had been persistently on with the P0335 code, extinguished itself shortly after the repair and clearing codes, remaining off for the entire observation period.

Over the next 3 months, we drove the Pathfinder over 5,000 miles without a single recurrence of the P0335 code or any related engine performance issues. Fuel efficiency also returned to its normal parameters, confirming the successful resolution of the problem. This sustained performance validated our DIY approach and provided strong evidence that the new sensor had effectively restored the engine’s critical timing functions.

Reflecting on the entire experience, certain aspects could have been approached differently to further optimize the process.

When to Get Professional Help With Crank Sensor Issues

Looking back, if we were to undertake the Nissan Pathfinder crankshaft position sensor replacement again, a few aspects would warrant a different approach for even smoother execution. While our repair was successful, a little more upfront investment or diagnostic effort could have streamlined the process.

Specifically, investing in a specialized sensor removal tool designed for tight spaces might have reduced the time spent carefully prying the old sensor. Additionally, a more thorough pre-inspection of the electrical connector’s condition, including testing its pins, would have been wise, perhaps saving a few minutes of careful deliberation.

However, it’s crucial to recognize when professional help with crankshaft sensor issues is necessary. If the sensor is in a particularly inaccessible location for your skill level, if diagnostic codes persist after replacement, or if you suspect complex electrical issues beyond a simple sensor swap, a professional mechanic is the safest bet.

Similarly, if you lack the necessary tools or confidence, or if the `Pathfinder P0335 code` is accompanied by other serious engine symptoms, seeking expert assistance can prevent further damage. A specialized wiring harness tester would have improved the process and saved an estimated 20 minutes in confirming the wiring integrity.

FAQ

Q1: What are the common symptoms of a bad Nissan Pathfinder crankshaft position sensor?
A failing Nissan Pathfinder crankshaft position sensor often causes symptoms like engine misfires, rough idling, intermittent stalling, or a complete no-start condition. You might also experience decreased fuel efficiency and illumination of the check engine light, typically accompanied by a P0335 diagnostic trouble code.

These issues stem from the engine control unit receiving incorrect timing information.

Q2: Can I replace a Nissan Pathfinder crankshaft position sensor myself?
Yes, many DIY enthusiasts with moderate mechanical skills can replace a Nissan Pathfinder crankshaft position sensor, especially on older models. Our case study demonstrates that with the right tools and patience, substantial cost savings are achievable. However, be prepared for tight access and potentially stubborn bolts, which require careful handling.

Q3: Where is the crankshaft position sensor typically located on different Pathfinder models?
The Nissan Pathfinder crankshaft position sensor location typically varies by engine and model year. For many V6 engines, like the VQ40DE (2005-2012), it’s often on the rear of the engine block, near the firewall, above the transmission bell housing.

Newer V6 engines, such as the VQ35DD (2013+), might have it on the front of the engine block near the crankshaft pulley. Always consult your specific service manual.

Q4: What tools are needed to access and replace the Pathfinder crankshaft sensor?
Basic hand tools are generally sufficient, including a socket wrench set with extensions and swivel joints, appropriate sized sockets (e.g., 10mm or 12mm), penetrating oil, a small pry bar, and a torque wrench.

Safety glasses and gloves are also essential. Specific challenges like rusted bolts may require additional patience and pre-treatment.

Q5: How long does it take to replace a Nissan Pathfinder crankshaft position sensor?
Based on our real-world repair, replacing a Nissan Pathfinder crankshaft position sensor can take approximately 1.5 to 3 hours for a DIY mechanic, assuming moderate experience and the necessary tools are at hand.

Factors like corrosion, tight access, or unexpected issues can extend this time, so allocate ample time for the project.

Conclusion

Diagnosing a failing Nissan Pathfinder crankshaft position sensor early saves significant repair costs and prevents further damage. Our real-world case study demonstrated that DIY replacement is feasible for many, offering substantial savings of ~$375-$625 compared to professional services. Careful attention to specific model year location and thorough preparation, including appropriate tool selection and pre-treating rusted components, are key to a successful repair.

The immediate and long-term improvements in our Pathfinder’s performance, coupled with the eradication of all initial crankshaft sensor symptoms, confirmed the value of our hands-on approach. If your Nissan Pathfinder shows crankshaft position sensor symptoms, use this guide to confidently approach the diagnosis and potential DIY repair.
