2017 Nissan Rogue Cabin Air Filter Location Guide With Photos
Last Updated on April 23, 2026 by Ryan
The 2017 Nissan Rogue cabin air filter is located behind the passenger-side glove box — but finding the housing door and opening it correctly takes a few steps that are much clearer with photos than with text alone.
The glove box has a specific drop mechanism that most owners have never used. The filter housing has a retaining clip that trips up almost every first-timer. This guide shows exactly what you will see at each step, with annotated photos confirming each detail.
Why the Cabin Air Filter Is Hard to Find on the 2017 Rogue
Most owners look under the hood first. The cabin air filter on the 2017 Rogue is not there — that is the engine air filter, a completely separate part. The cabin air filter lives inside the vehicle, and reaching it requires a glove box drop step that is not obvious the first time.
Recommended Best Deal Products
The glove box does not simply pull fully open. It has side stop pins that hold it at a normal angle. You have to squeeze the side panels inward to release those pins before the box drops all the way down. Skip that step and you will think the housing is inaccessible.
Nissan recommends replacing the cabin air filter every 12 months or 12,000 miles. If you drive in a high-pollen area or near construction, inspect it at 10,000 miles — a clogged filter reduces airflow noticeably and puts extra load on the blower motor. For other 2017 Nissan Rogue maintenance access points, see our guide to the 2017 Nissan Rogue fuse box location.
Where the Cabin Air Filter Sits in the 2017 Nissan Rogue
The cabin air filter on the 2017 Nissan Rogue sits inside the passenger compartment, directly behind the glove box on the passenger side. It is not under the hood, not under the dashboard on the driver’s side, and not accessible from the engine bay.

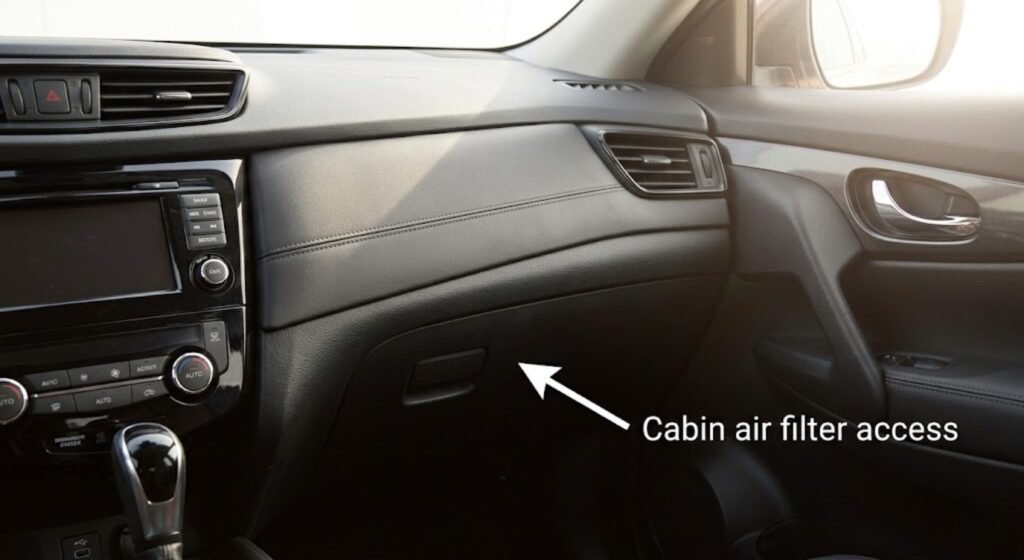

As shown in the image above, the access point is the passenger-side glove box — the filter housing sits directly behind it inside a plastic housing cavity.
Recommended Best Deal Products

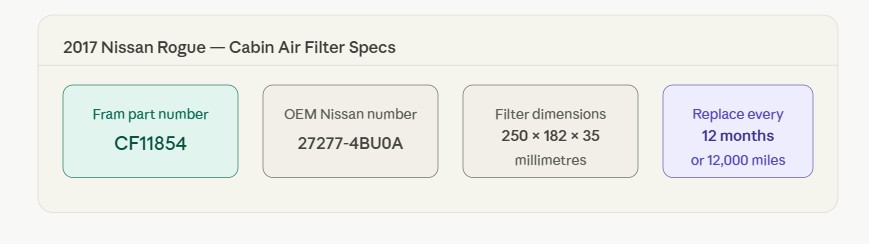

The correct replacement filter is the Fram CF11854 (OEM equivalent: Nissan part number 27277-4BU0A). The filter measures 250mm × 182mm × 35mm. Confirm fitment against your VIN before purchasing. For related Nissan Rogue filter guides, see our 2016 Nissan Rogue oil filter location walkthrough.
How To Open the Glove Box To Reach the Filter Housing
Open the glove box to its normal position first. You will notice it stops partway — it cannot drop fully open on its own because of two stop pins on the left and right side panels.
To release those pins:
- Grip the left and right side edges of the open glove box simultaneously
- Squeeze both sides inward toward each other — you will feel the stop pins compress
- While squeezing, let the glove box swing fully downward — it will hang by its lower hinge

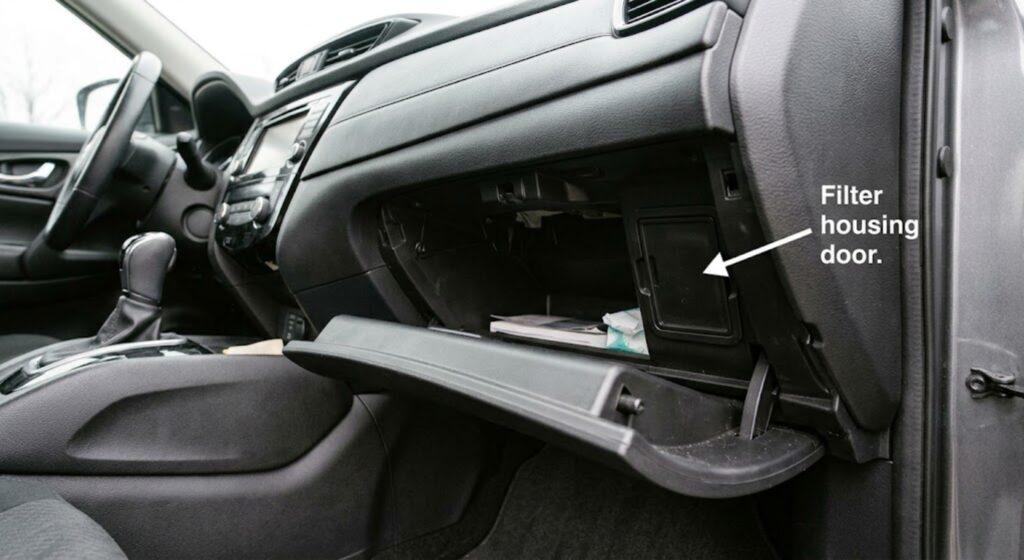

Notice the filter housing door visible on the right wall of the open cavity, as shown in the image above. No tools are needed for this step. If the glove box feels stiff when you squeeze the sides, apply a little more inward pressure — the pins release cleanly once you hit the right angle.
Recommended Best Deal Products
How To Open the Filter Housing Door and Remove the Filter
With the glove box fully dropped, the filter housing door is visible on the right interior wall of the cavity. Here is the full sequence:

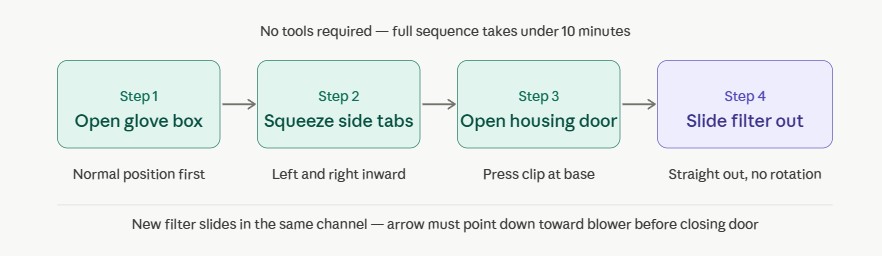

As the diagram above shows, the full sequence takes 4 steps and requires no tools. Here is what each step involves:
- Locate the housing door on the right wall of the glove box cavity — it is a flat plastic panel with a tab on one edge
- Press the retaining clip tab to release the door — it swings or slides open once released
- Note the airflow arrow direction printed on the side of the old filter before pulling it out
- Slide the old filter straight out — no rotation needed — then slide the new filter into the same channel
The filter slides on a track. If it catches, check that you are pulling straight out along the track rather than at an angle. The new filter goes in the same way — straight in along the track until it seats fully.

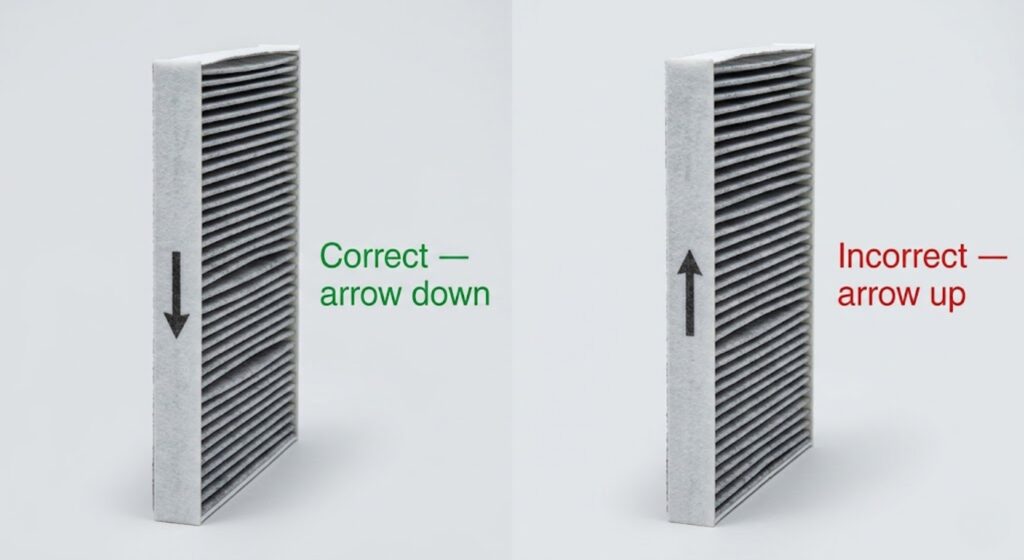

Correct vs Incorrect Filter Orientation on the 2017 Rogue
Every cabin air filter has an airflow arrow printed on its side panel. On the 2017 Nissan Rogue, that arrow must point downward toward the blower motor when the filter is installed.
As shown in the image above, the correct orientation has the arrow pointing down. The incorrect orientation — arrow pointing up — means the filtration layers are working against the designed airflow direction. The filter still physically fits either way, which is what makes this mistake so common.
Installing it backwards does not destroy the filter immediately. Over time, reversed airflow reduces the system’s filtration efficiency and adds resistance that stresses the blower motor. Always check the arrow before closing the housing door.

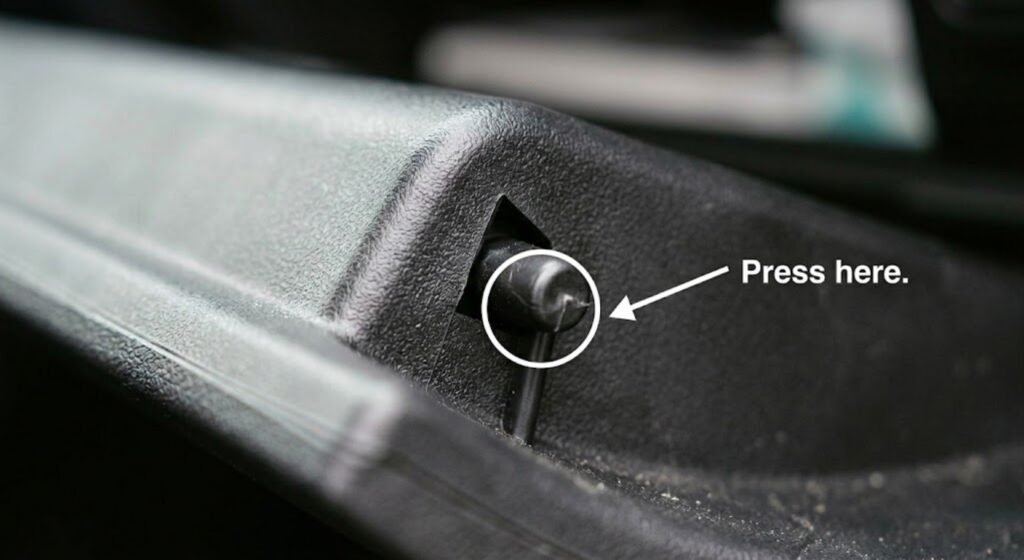

The Retaining Clip Detail Most DIYers Miss
The housing door is held shut by a small plastic retaining clip on one edge of the door panel. Most first-timers press the center of the door — that does not release the clip.
As the close-up above shows, the correct press point is at the base of the tab — not the middle of the door panel. Press at the base of the clip, and the door releases cleanly. Press at the wrong spot repeatedly, and the plastic tab can crack.
If the housing door does not close flush after reinstalling the filter, check the clip first. It needs to be re-seated into its channel before the door will sit flat. Never force the door shut — if it is not closing, the clip is not aligned.
Frequently Asked Questions
Where is the cabin air filter on a 2017 Nissan Rogue?
Behind the passenger-side glove box, inside the cabin. Squeeze both sides of the glove box inward to drop it fully open. The filter housing door is on the right wall of the open cavity.
Do I need tools to change the cabin air filter on a 2017 Nissan Rogue?
No tools are needed. The glove box releases by squeezing the side panels inward, and the filter housing door opens by pressing the retaining clip tab at its base. The filter slides straight in and out with no rotation.
What cabin air filter fits a 2017 Nissan Rogue?
The 2017 Nissan Rogue uses the Fram CF11854 or OEM Nissan part number 27277-4BU0A. The filter measures 250mm × 182mm × 35mm. Always confirm fitment using your VIN before purchasing.
How often should you replace the cabin air filter on a 2017 Nissan Rogue?
Nissan recommends replacing it every 12 months or 12,000 miles, whichever comes first. If you regularly drive in dusty conditions, high-pollen areas, or heavy urban traffic, inspect the filter at 10,000 miles.
What happens if you install the cabin air filter backwards in a 2017 Rogue?
The filter will seat in the housing either way, but reversed airflow reduces filtration efficiency because the filter media layers are directional. Over time this stresses the blower motor. Always confirm the arrow points toward the blower before closing the housing door.
What You Confirmed By Seeing Each Step
Finding the 2017 Nissan Rogue cabin air filter location is straightforward once you know the glove box drop mechanism and what the filter housing door actually looks like.
To recap: the filter is on the passenger side behind the glove box. Squeeze the side tabs to fully drop the box. Press the clip tab at its base to open the housing. Slide the filter out, confirm the arrow direction on the new filter, slide it in, and close the door. Each image above shows exactly what you should see at that step — if your glove box or housing looks different at any point, stop and recheck the step rather than forcing anything.
For other Nissan Rogue guides, see our Nissan Rogue cruise control setup walkthrough.
